>> Product Introduction

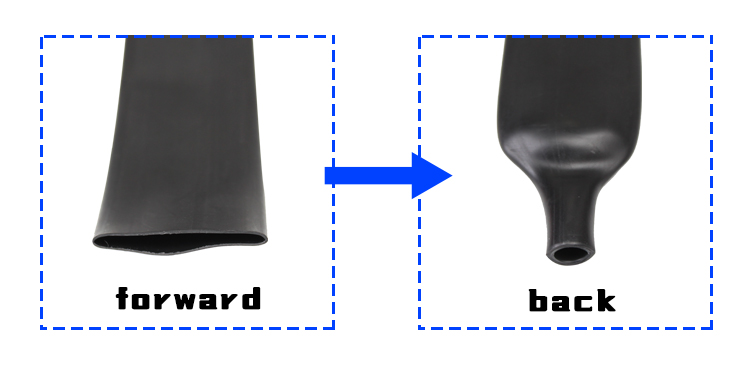

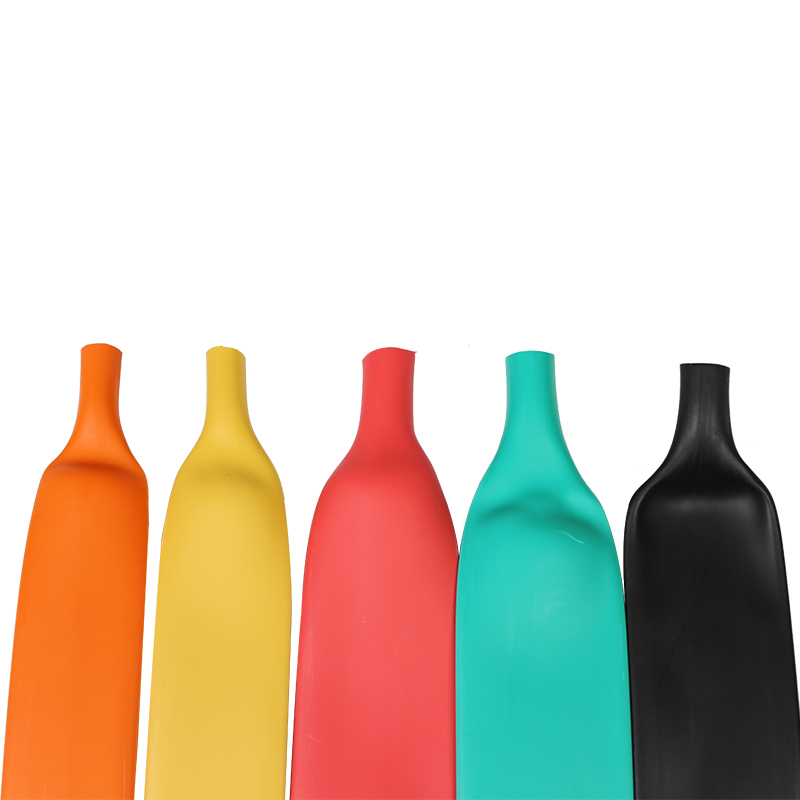

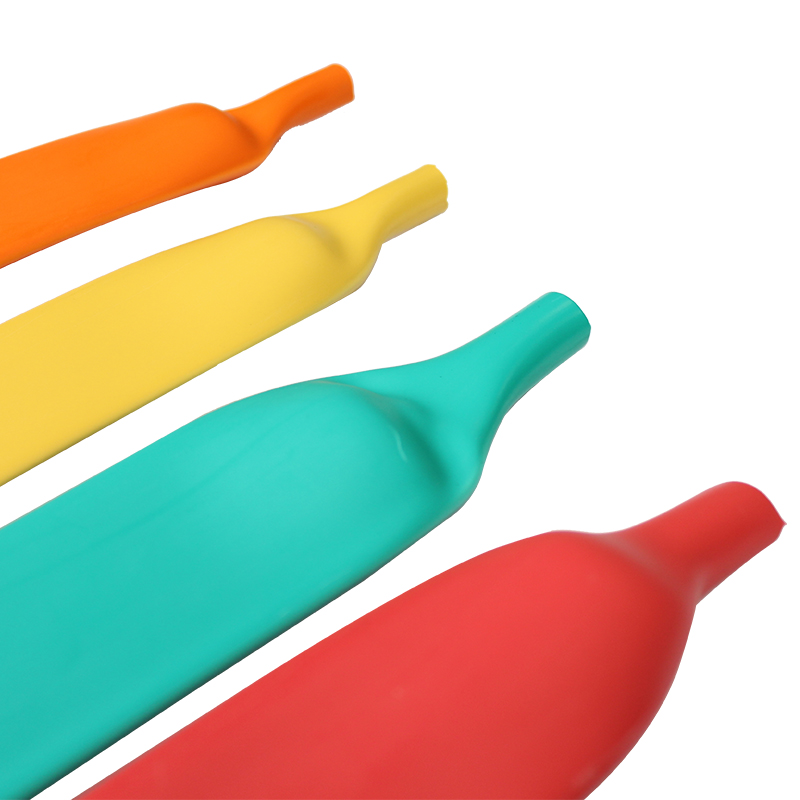

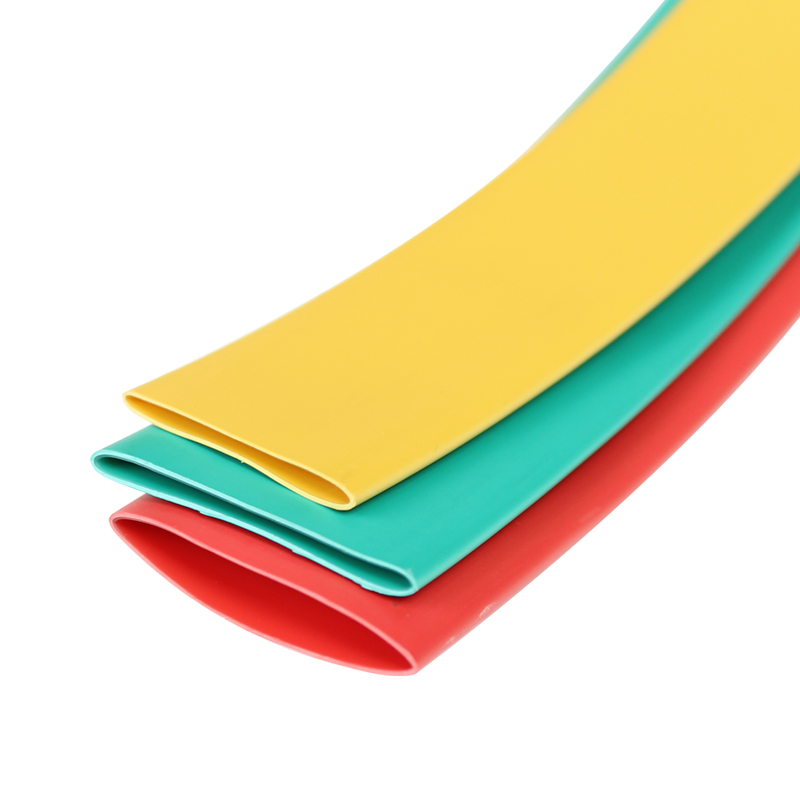

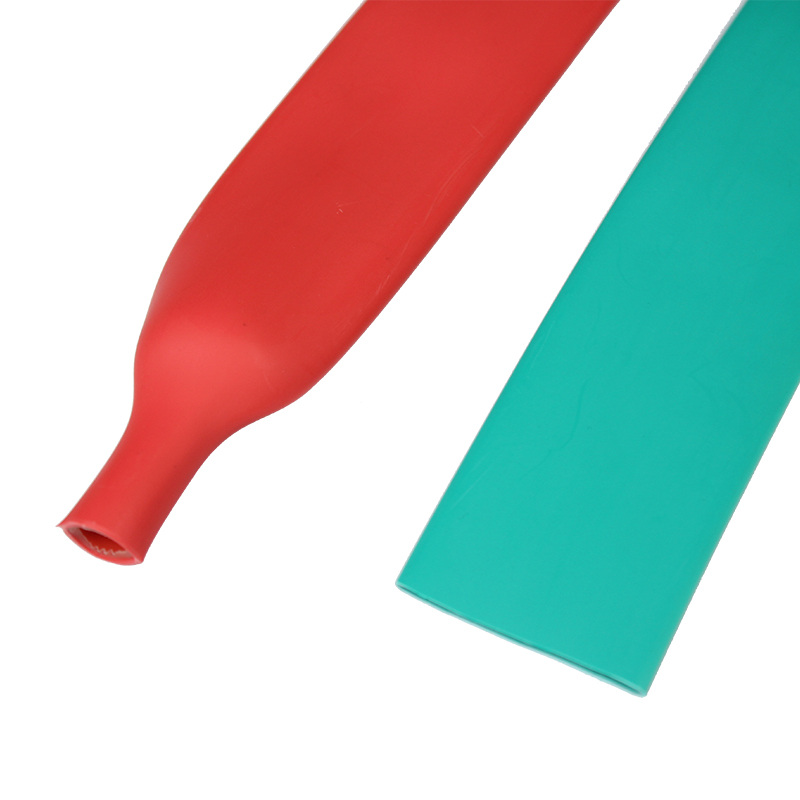

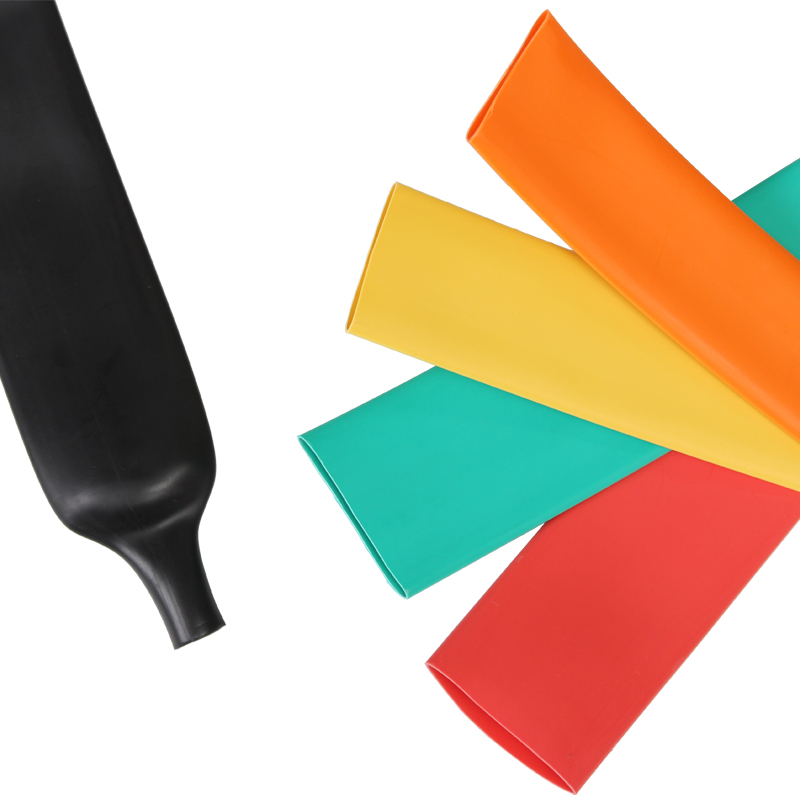

Double-wall heat shrink tubing is made of soft polyolefin and hot melt adhesive co-extruded and is used for insulation protection of wires and cables, wiring and connectors that need to be sealed, waterproof and moisture-proof. It can be well applied in many industries such as electronics, automobiles and communications.
>> Product Advantage
Shrink ratio 3:1 or 4:1
Excellent hot melt adhesive and high shrink ratio provide excellent sealing
For sealing and insulation protection of electronic connection parts
Damaged insulation can be easily repaired without removing the connector
Continuous use temperature range: -55℃ ~ 125℃
Initial shrinkage temperature: 80°C
Minimum complete shrinkage temperature: 110℃
>> Technical Parameters
>> Technical Parameters

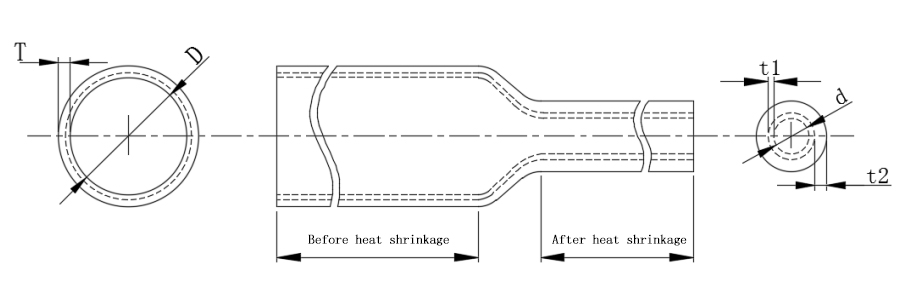

| Specification | Before heat shrinkage size (mm) | After heat shrinkage size(mm) | |||
| Inner diameter D(mm) | Wall thickness T(mm) | Inner diameter d(max) | Wall thickness t1+t2 | ||
| 3:1 | Φ1.6 | ≥1.6 | 0.30±0.10 | 0.7 | 0.55±0.15 |
| Φ2.4 | ≥2.4 | 0.35±0.10 | 0.8 | 0.60±0.15 | |
| Φ3.2 | ≥3.2 | 0.40±0.10 | 1.05 | 1.00±0.15 | |
| Φ4.8 | ≥4.8 | 0.45±0.10 | 1.6 | 1.10±0.15 | |
| Φ6.4 | ≥6.4 | 0.45±0.10 | 2.1 | 1.15±0.15 | |
| Φ7.9 | ≥7.9 | 0.50±0.15 | 2.7 | 1.30±0.20 | |
| Φ9.5 | ≥9.5 | 0.55±0.15 | 3.1 | 1.35±0.20 | |
| Φ12.7 | ≥12.7 | 0.60±0.15 | 4.2 | 1.60±0.20 | |
| Φ15.4 | ≥15.4 | 0.65±0.18 | 5.1 | 1.75±0.25 | |
| Φ19.1 | ≥19.1 | 0.65±0.18 | 6.3 | 1.85±0.25 | |
| Φ25.4 | ≥25.4 | 0.75±0.18 | 8.4 | 2.05±0.25 | |
| Φ30 | ≥30 | 0.75±0.18 | 10 | 2.10±0.25 | |
| Φ39 | ≥39 | 0.85±0.20 | 13 | 2.55±0.30 | |
| Φ50 | ≥50 | 0.85±0.20 | 17.2 | 2.75±0.30 | |
| Φ64 | ≥64 | 0.90±0.20 | 21.3 | 2.80±0.30 | |
| 4:1 | 4/1 | ≥4.0 | 0.40±0.10 | 1 | 1.10±0.15 |
| 6/1.5 | ≥6.0 | 0.45±0.10 | 1.5 | 1.30±0.15 | |
| 8/2 | ≥8.0 | 0.50±0.15 | 2 | 1.35±0.20 | |
| 12/3 | ≥12.0 | 0.55±0.15 | 3 | 1.75±0.20 | |
| 16/4 | ≥16.0 | 0.60±0.15 | 4 | 1.85±0.20 | |
| 20/5 | ≥20.0 | 0.65±0.20 | 5 | 2.10±0.30 | |
| 24/6 | ≥24.0 | 0.65±0.20 | 6 | 2.20±0.30 | |
| 32/8 | ≥32.0 | 0.75±0.20 | 8 | 2.60±0.30 | |
| 40/10 | ≥40.0 | 0.80±0.20 | 10 | 2.80±0.30 | |
| 52/13 | ≥52.0 | 0.80±0.20 | 13 | 2.90±0.30 | |
| 60/15 | ≥60.0 | 0.90±0.20 | 15 | 3.30±0.30 | |
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
