>> Product Introduction

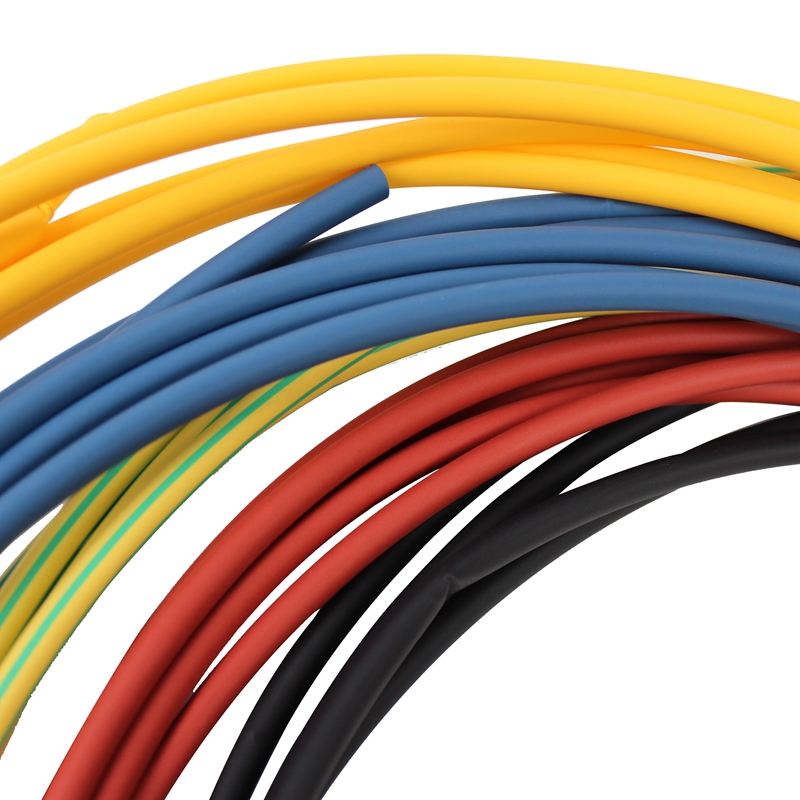

Halogen-free flame-retardant heat shrink tubing is made of radiation cross-linked polyolefin material with excellent physical, chemical and electrical properties. Its main functions are electrical insulation of connectors, rust and corrosion prevention of solder joints, mechanical protection and wiring harnesses. It is widely used in electronics, communications, automobiles, ships, aircraft manufacturing and other fields.
>> Product Advantage
Heat shrink ratio: 2:1
Halogen-free, low smoke, non-toxic, soft, flame retardant
Shrinkage temperature: ≥84℃
Final shrinkage temperature: ≥120℃
Operating temperature: -55℃~125℃
Environmental standards: RoHS, IPC/JEDEC-J-STD-709, Class H materials

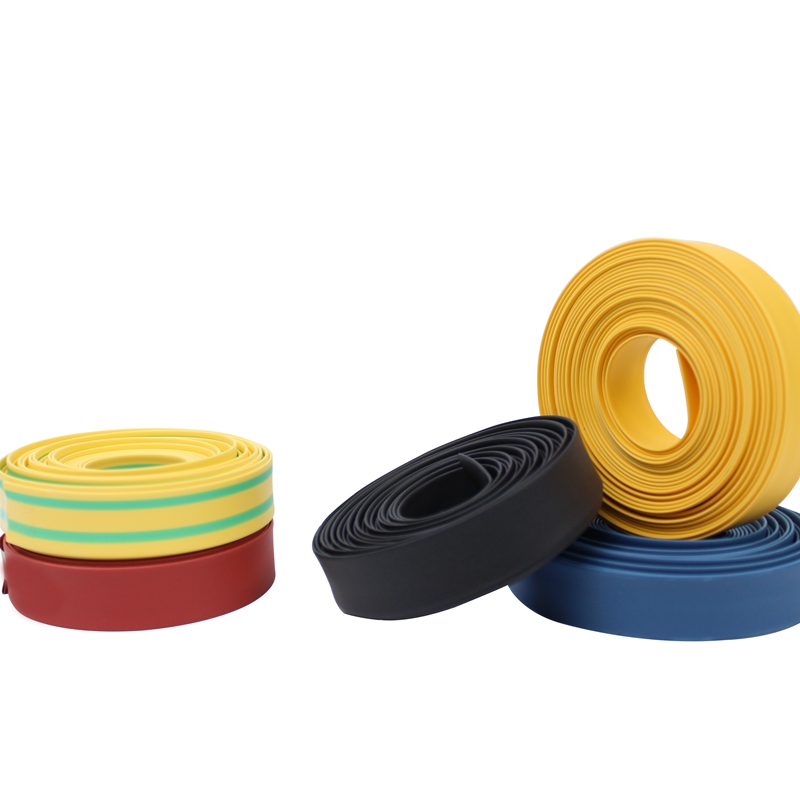

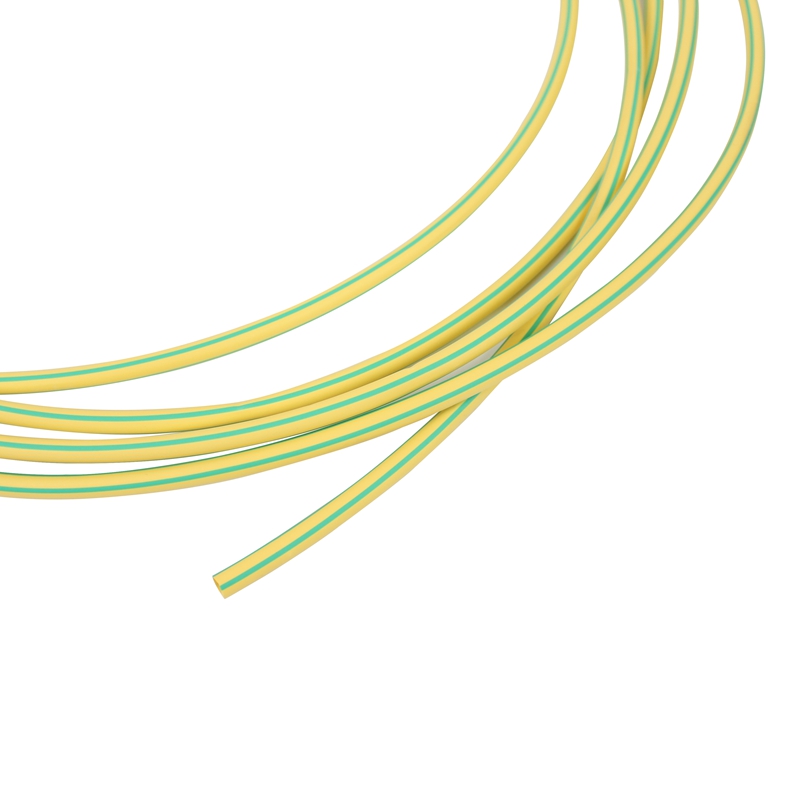

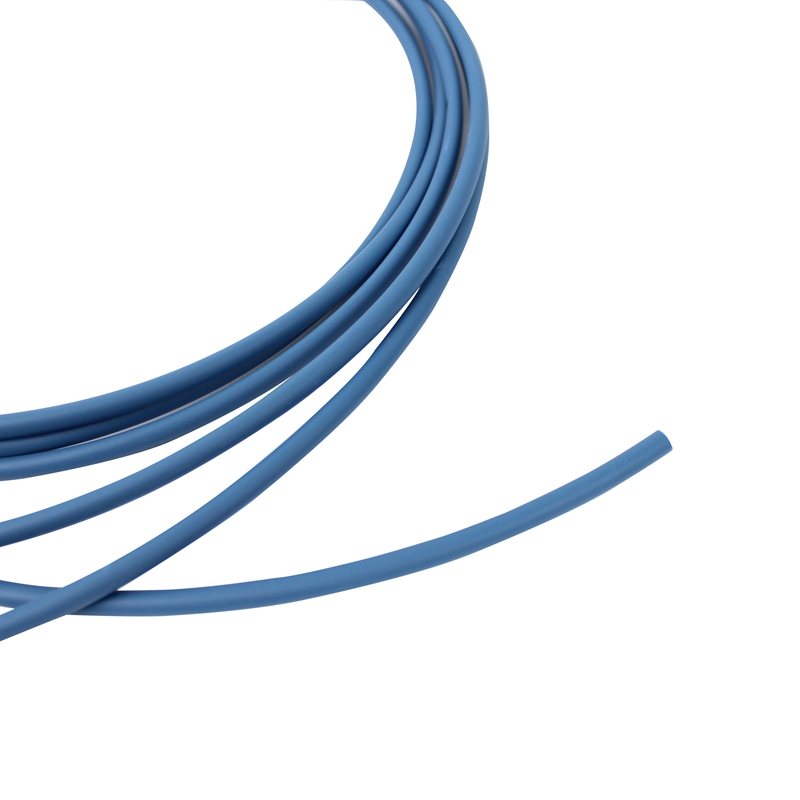

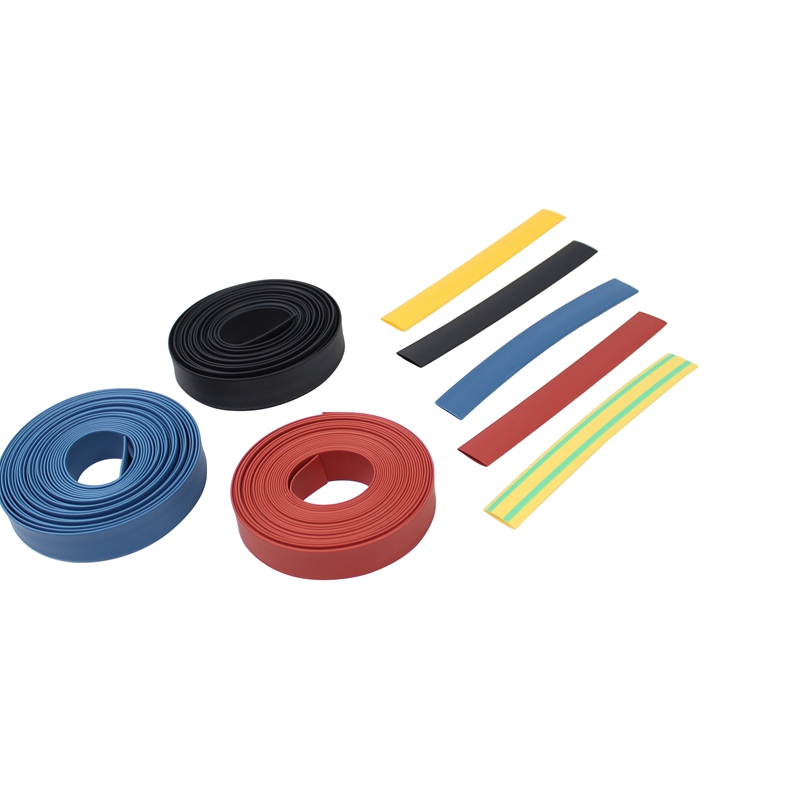

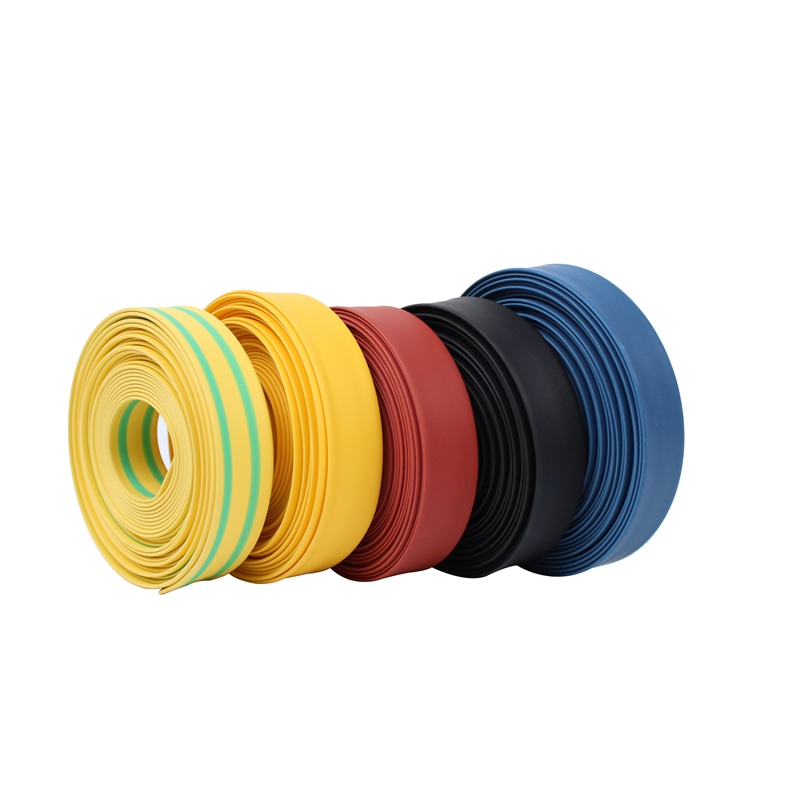

Standard colors: black, white, red, yellow, green, blue, yellow-green and other ten international standard colors.
During use, in order to ensure that the heat shrink tubing can be completely shrunk into place, a forced air constant temperature oven is used, and the shrinking temperature is controlled at 125°C. Special attention should be paid to the fact that when the heat shrink tubing is placed in the oven, the oven temperature has a downward trend, and it takes a certain amount of time to reach the set temperature; at the same time, it also takes a certain amount of time for the heat shrink tubing to reach the final shrinking temperature through the circulation of hot air in the oven. Therefore, the heat shrink tubing can only be completely shrunk into place when the actual oven temperature reaches the set temperature and maintains this temperature for about 3 minutes.
>> Technical Parameters
>> Technical Parameters

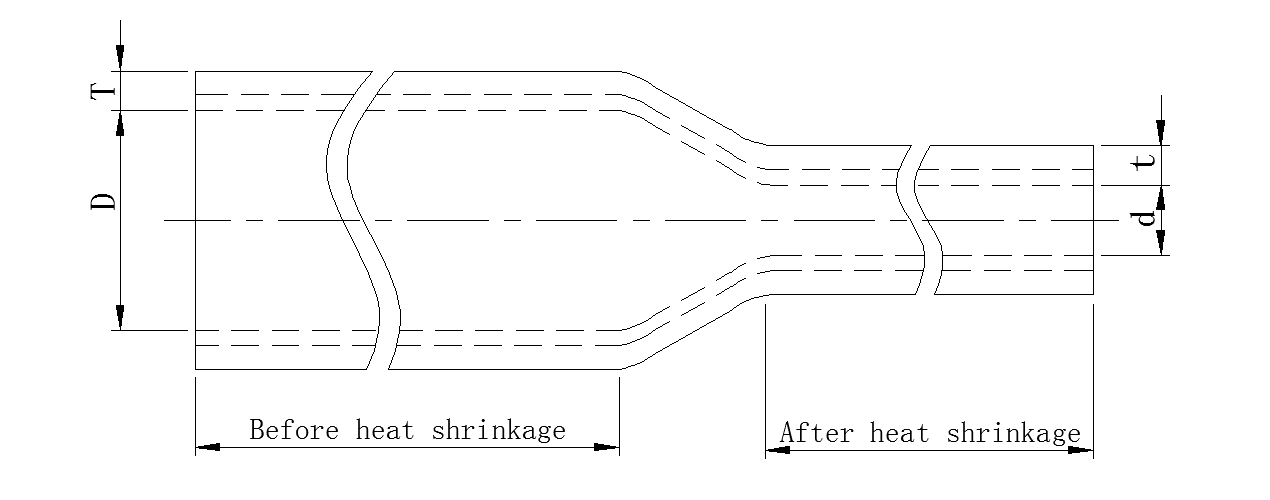

| Specification （mm） | Before heat shrinkage（mm） | After heat shrinkage（mm） | Packing (Meter/Roll) | Scope of application (mm) | ||
| Inner diameter D(mm) | Wall Thickness T(mm) | Inner diameter d(mm) | Wall Thickness t(mm) | |||
| Φ 0.6CB | 0.9±0.2 | 0.13±0.05 | ≤0.40 | 0.20±0.10 | 200 | 0.4～0.7 |
| Φ 0.8CB | 1.1±0.2 | 0.13±0.05 | ≤0.50 | 0.20±0.10 | 200 | 0.6～0.8 |
| Φ 1.0CB | 1.40±0.2 | 0.13±0.05 | ≤0.65 | 0.20±0.10 | 200 | 0.7～1.0 |
| Φ 1.5CB | 1.90±0.2 | 0.13±0.05 | ≤0.85 | 0.20±0.10 | 200 | 0.9～1.4 |
| Φ 2.0CB | 2.40±0.2 | 0.13±0.05 | ≤1.00 | 0.22±0.10 | 200 | 1.1～1.8 |
| Φ 2.5CB | 2.90±0.2 | 0.13±0.05 | ≤1.30 | 0.25±0.10 | 200 | 1.4～2.3 |
| Φ 3.0CB | 3.40±0.2 | 0.13±0.05 | ≤1.50 | 0.28±0.10 | 200 | 1.6～2.7 |
| Φ 3.5CB | 3.90±0.2 | 0.13±0.05 | ≤1.80 | 0.28±0.10 | 200 | 1.9～3.2 |
| Φ 4.0CB | 4.40±0.2 | 0.15±0.05 | ≤2.00 | 0.30±0.10 | 200 | 2.1～3.6 |
| Φ 4.5CB | 4.90±0.2 | 0.15±0.05 | ≤2.30 | 0.30±0.10 | 100 | 2.4～4.0 |
| Φ 5.0CB | 5.50±0.2 | 0.15±0.05 | ≤2.5 | 0.32±0.10 | 100 | 2.6～4.5 |
| Φ 6.0CB | 6.50±0.2 | 0.15±0.05 | ≤3.0 | 0.32±0.10 | 100 | 3.1～5.4 |
| Φ 7CB | 7.50±0.3 | 0.15±0.05 | ≤3.5 | 0.32±0.10 | 200 | 3.7～6.3 |
| Φ 8CB | 8.50±0.3 | 0.15±0.05 | ≤4.0 | 0.32±0.10 | 200 | 4.2～7.2 |
| Φ 9CB | 9.50±0.3 | 0.15±0.05 | ≤4.5 | 0.35±0.10 | 200 | 4.7～8.0 |
| Φ 10CB | 10.5±0.3 | 0.15±0.05 | ≤5.0 | 0.35±0.10 | 200 | 5.2～9.0 |
| Φ 11CB | 11.5±0.3 | 0.18±0.05 | ≤5.5 | 0.40±0.10 | 200 | 5.7～10.0 |
| Φ 12CB | 12.5±0.3 | 0.20±0.05 | ≤6.0 | 0.40±0.10 | 200 | 6.2～11.0 |
| Φ 13CB | 13.5±0.3 | 0.20±0.05 | ≤6.5 | 0.40±0.10 | 200 | 6.7～12.0 |
| Φ 14CB | 14.5±0.3 | 0.20±0.05 | ≤7.0 | 0.40±0.10 | 200 | 7.3～13.0 |
| Φ 15CB | 15.5±0.4 | 0.20±0.05 | ≤7.5 | 0.40±0.10 | 200 | 7.8～14.0 |
| Φ 16CB | 16.5±0.4 | 0.22±0.05 | ≤8.0 | 0.40±0.10 | 200 | 8.3～15.0 |
| Φ 17CB | 17.5±0.4 | 0.22±0.05 | ≤8.5 | 0.40±0.10 | 200 | 8.8～16.0 |
| Φ 18CB | 18.5±0.4 | 0.22±0.05 | ≤9.0 | 0.42±0.10 | 200 | 9.3～17.0 |
| Φ 20CB | 20.5±0.5 | 0.25±0.05 | ≤10.0 | 0.45±0.10 | 200 | 10.5～19.0 |
| Φ 22CB | 22.5±0.5 | 0.25±0.05 | ≤11.0 | 0.45±0.10 | 200 | 11.5～20.5 |
| Φ 25CB | 25.5±0.5 | 0.25±0.05 | ≤12.5 | 0.45±0.10 | 100 | 13.0～24.0 |
| Φ 28CB | 28.5±0.5 | 0.30±0.08 | ≤14.0 | 0.60±0.10 | 100 | 14.5～27.0 |
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
