Double Split Flexible Corrugated Pipe Vs. Standard Flexible Conduit

When it comes to cable protection and management, professionals face various choices. Among these options, the Double Split Flexible Corrugated Pipe stands out due to its unique design and flexibility, offering significant advantages over standard flexible conduits. Understanding how these two options differ can help engineers, installers, and project managers make more informed decisions. In this article, we will explore the distinctions between Double Split Flexible Corrugated Pipe and standard flexible conduit, focusing on key aspects like installation, durability, and cost-effectiveness.

Understanding Standard Flexible Conduit

A flexible conduit is commonly used to protect cables from environmental hazards, mechanical stress, and physical damage. It’s typically made of metal or plastic and provides a level of flexibility that allows it to be routed easily through tight spaces.

Characteristics of Standard Flexible Conduit

Standard flexible conduits are:

Bendable: Flexible conduits can bend easily, making them suitable for routing around corners or through complex paths.

Protective: These conduits protect cables from external factors such as moisture, dust, and minor impacts.

Widely Used: They are used in various applications such as electrical installations, industrial settings, and automotive systems.

However, while standard flexible conduits provide basic protection and flexibility, they have limitations, particularly when it comes to maintenance and cable management. Unlike the Double Split Flexible Corrugated Pipe, standard conduits don’t offer the same level of ease for cable insertion or removal, often requiring the disassembly of the conduit to add or replace cables. Additionally, standard flexible conduits may not always fit in confined spaces as efficiently as their split counterparts, leading to installation difficulties in complex environments.

What Sets Double Split Flexible Corrugated Pipe Apart

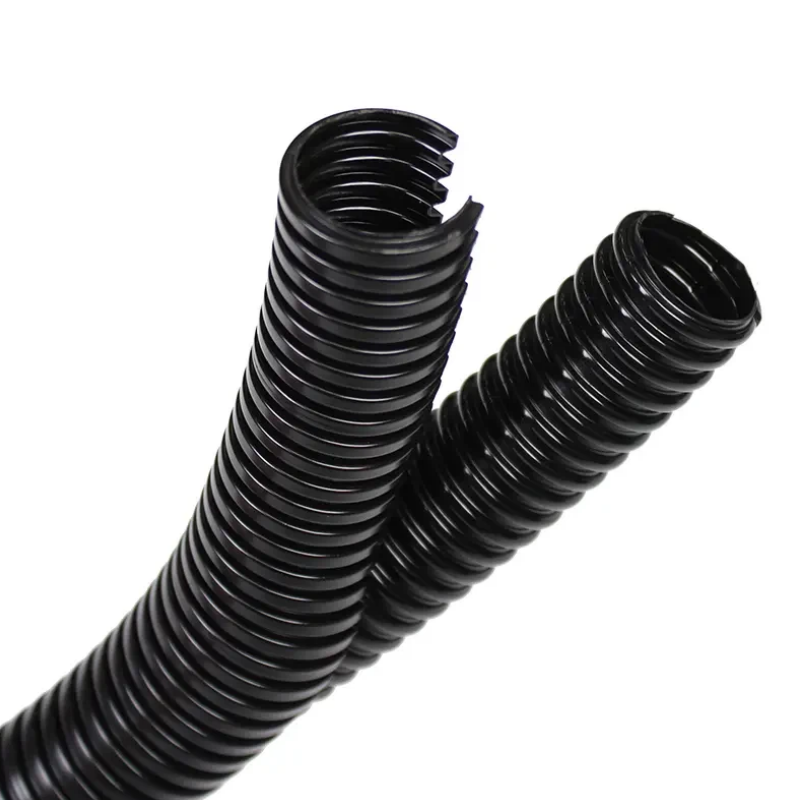

The Double Split Flexible Corrugated Pipe is a modern solution designed to overcome the limitations of standard flexible conduits. Its defining feature is the longitudinal split that runs along its length, allowing for easier cable management and installation.

Structural Difference: Longitudinal Split vs. Solid Wall

Unlike the solid wall of standard flexible conduit, the Double Split Flexible Corrugated Pipe has a split that runs from end to end. This design provides several benefits:

Easy Cable Insertion and Removal: The split pipe allows installers to easily insert, remove, or replace cables without disassembling the entire system.

Faster Retrofit and Maintenance: When retrofitting or upgrading an existing system, the split design allows for easy access to cables, reducing downtime and labor costs.

Space-Saving Features: The Double Split Flexible Corrugated Pipe is available in narrower diameters, making it ideal for tight installations where space is limited. This feature is particularly useful in applications with complex routing or constrained environments.

How the Split Feature Impacts Installation Flexibility

The split feature significantly enhances the flexibility of installation, making it easier to route cables in tight or challenging spaces. Installers no longer need to worry about threading cables through the entire length of a solid conduit, as they can simply split open the pipe and place the cables inside. This convenience speeds up the installation process, especially in retrofit scenarios where cables need to be added to an already-installed conduit.

Installation and Maintenance Comparison

The installation process for Double Split Flexible Corrugated Pipe is significantly easier and more time-efficient than standard flexible conduit.

Pull-Through vs. Snap-On Installation

Standard Conduit: Installing a standard conduit typically requires pulling cables through the tube, which can be time-consuming and challenging, particularly in long runs or complex systems.

Double Split Flexible Corrugated Pipe: With the split design, cables can be easily inserted by simply opening the conduit, saving time and effort. The snap-on installation feature makes this conduit ideal for situations where fast and efficient installation is essential.

Time and Labor Comparisons

The reduced installation time and ease of maintenance offered by the Double Split Flexible Corrugated Pipe result in lower labor costs. In contrast, standard conduit installations often require more time to route and secure cables, particularly when the conduit needs to be disassembled for cable maintenance or upgrades.

Ease of Future Cable Access

One of the standout advantages of the Double Split Flexible Corrugated Pipe is the ease with which cables can be accessed or replaced. With the split design, there’s no need to remove entire sections of conduit, allowing for quick repairs or upgrades without disrupting the entire system. This makes future maintenance far less intrusive and more cost-effective.

Protection and Durability Comparison

Both Double Split Flexible Corrugated Pipe and standard flexible conduit offer protection against external hazards, but the level of protection and durability can differ significantly depending on the materials used.

Physical, Environmental, and Wear Protection

Standard Flexible Conduit: Offers basic protection against physical impact, moisture, and dust. However, its solid wall design may not provide the same level of durability in harsh environments.

Double Split Flexible Corrugated Pipe: The corrugated design and split feature enhance the pipe’s ability to absorb impacts, resist abrasion, and protect against environmental factors like UV rays, chemicals, and moisture. These features make the Double Split Flexible Corrugated Pipe more suitable for demanding environments where durability is critical.

Material Differences and Performance in Harsh Environments

Standard Conduit: Typically made from PVC or metal, standard conduits may not perform as well in high-temperature or chemically aggressive environments.

Double Split Flexible Corrugated Pipe: Made from materials like HDPE or nylon, this type of pipe performs better in extreme conditions, offering greater resistance to high temperatures, chemicals, and repeated movements.

Longevity Expectations

Due to its durable construction, the Double Split Flexible Corrugated Pipe tends to have a longer lifespan compared to standard flexible conduit, especially when used in challenging conditions or exposed to frequent movement. This increased longevity reduces the frequency of replacements and maintenance, offering long-term cost savings.

Cost-Benefit View

When comparing Double Split Flexible Corrugated Pipe to standard flexible conduit, there are several important cost factors to consider.

Installation Cost Differences

Although the Double Split Flexible Corrugated Pipe may have a slightly higher initial cost than standard flexible conduit, the savings in installation time and labor often outweigh the difference. The ease of installation and maintenance offered by the split pipe results in lower overall project costs.

Component and Accessory Needs

The Double Split Flexible Corrugated Pipe typically requires fewer accessories than standard conduit systems. Its ability to easily snap open and close eliminates the need for extra fittings or tools, further reducing costs.

Service Life and Total Cost of Ownership

While standard flexible conduits may require frequent maintenance or replacement, the Double Split Flexible Corrugated Pipe offers a longer service life due to its superior durability. This leads to reduced long-term costs, making it a more cost-effective solution in the long run.

Which One Fits Your Project Needs?

The choice between Double Split Flexible Corrugated Pipe and standard flexible conduit ultimately depends on the specific needs of your project.

Standard Flexible Conduit: Ideal for simple, continuous runs where easy bending is required. Best suited for straightforward installations that don’t require regular maintenance or upgrades.

Double Split Flexible Corrugated Pipe: Perfect for retrofit projects, complex routing, or systems where frequent cable access is needed. Its flexibility and ease of maintenance make it an ideal choice for high-density environments like data centers, telecom networks, or industrial applications.

Conclusion

In conclusion, the Double Split Flexible Corrugated Pipe provides numerous advantages over standard flexible conduit, particularly when it comes to ease of installation, long-term durability, and flexibility in maintenance. While standard conduits may be suitable for simpler, less demanding applications, the Double Split Flexible Corrugated Pipe excels in environments that require high durability, frequent cable updates, and space efficiency. For more information on how our corrugated conduit solutions can benefit your next project, contact us today.

FAQ

What is the difference between Double Split Flexible Corrugated Pipe and standard flexible conduit?
The primary difference is the split design of the Double Split Flexible Corrugated Pipe, which allows for easy cable access and removal without disassembly, making it more flexible and easier to maintain than standard conduit.

Can Double Split Flexible Corrugated Pipe be used in outdoor environments?
Yes, the Double Split Flexible Corrugated Pipe is available in UV-resistant materials that make it suitable for outdoor use, providing excellent protection from environmental elements.

How does the Double Split Flexible Corrugated Pipe improve maintenance?
Its split design allows for easy cable insertion and removal, reducing the time and effort required for future upgrades or repairs. This feature eliminates the need to disassemble the conduit system.

Is the Double Split Flexible Corrugated Pipe more cost-effective than standard flexible conduit?
While the Double Split Flexible Corrugated Pipe may have a higher upfront cost, its ease of installation, reduced labor requirements, and longer lifespan make it a more cost-effective option in the long term.
