FEP Transparent Corrugated Conduit Pipe

Availability:

Quantity:



Inquire Add to Basket

Product Description

>> Product Introduction

The environmentally friendly FEP Teflon Flexible corrugated conduit pipe is a new type of high-temperature resistant bellows developed by our company in 2020. The continuous use temperature can reach 200°C. This product has low friction coefficient, low moisture absorption, low smoke, high fluidity, good rigidity, electrical properties, creep resistance, flexibility, chemical resistance, weather resistance, thermal stability, etc. It is particularly suitable for use in the fields of anti-sticking and chemical resistance under high temperature conditions.

>> Product Advantage

Material: FEP/PTFE/Teflon
Temperature: -60℃～+200℃
Structure: The middle part is wavy, with flat joints at both ends
Color: transparent (customizable color)
Product use: FEP Flexible Corrugated conduit pipe widely used in cooling water circulation in the fields of liquid cooling industry, large data center equipment, water-cooled cabinets, etc., playing the role of connection and protection.

>> Technical Parameters

Item	Performance Indicators
Specific gravity（g/cm3）	2.12～2.17
Operating temperature	-60℃～200℃
Tensile Strength(MPa)	≥19
Elongation at break(%)	≥250
Shore Hardness (Shore D)	55
Dielectric breakdown strength(MV/m)	≥20
Flame retardant grade	V-0
Weather resistance	Excellent
Environmental protection	RoHS 2.0

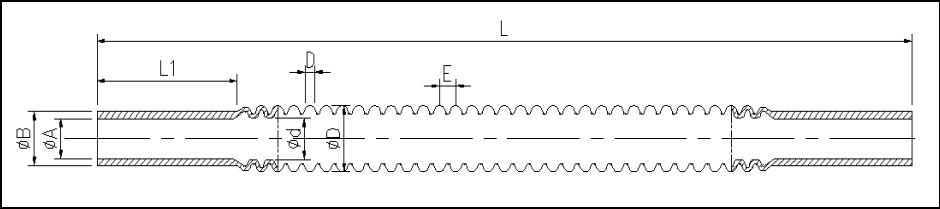

Specification	Connector inner diameter φA	Connector outer diameter φB	Corrugation outer diameter φD	Wave width D	Wave spacing E	Length L

Φ6*8	6.0±0.2	8.0±0.2	7.8±0.3	1.7	2.7	137/545/695
Φ8*10	8.0±0.2	10.1±0.2	13.6±0.3	1.8	3.4	290/390/610
Kind tips: 1）Conventional colors: transparent, black, other colors can be customized; 2）Specifications can be customized, other lengths can also be customized;
