Heat shrinkable braided sleeving: where it actually works

Engineers face a constant dilemma when routing cable harnesses. Standard heat shrink tubing yields a secure fit. However, it often sacrifices flexibility and transforms cable bundles into rigid, unmanageable sticks. On the other hand, standard expandable braided sleeving offers exceptional flexibility and physical defense. Yet, it requires secondary securing materials like zip ties or tape. Cut ends also frequently fray. Enter the hybrid solution: heat shrinkable braided sleeving. This component thrives in demanding environments. It provides a tight, conforming fit alongside dynamic flexibility. We will define exactly when you should specify this material over traditional alternatives. You will learn how to evaluate its technical specs effectively. We will also cover practical implementation guidelines for busy production floors.

Key Takeaways

• Combines the abrasion resistance of woven polyester with the conforming grip of polyolefin heat shrink.
• Ideal for high-vibration environments (automotive, aerospace) where rattle suppression and flexibility are critical.
• Requires specific installation protocols (e.g., proper heat distribution to avoid melting the weave) and offers a standard 2:1 shrink ratio.
• Does not provide environmental sealing against moisture or fluids, unlike solid dual-wall heat shrink tubing.

The hybrid advantage: Solving the flexibility vs. security tradeoff

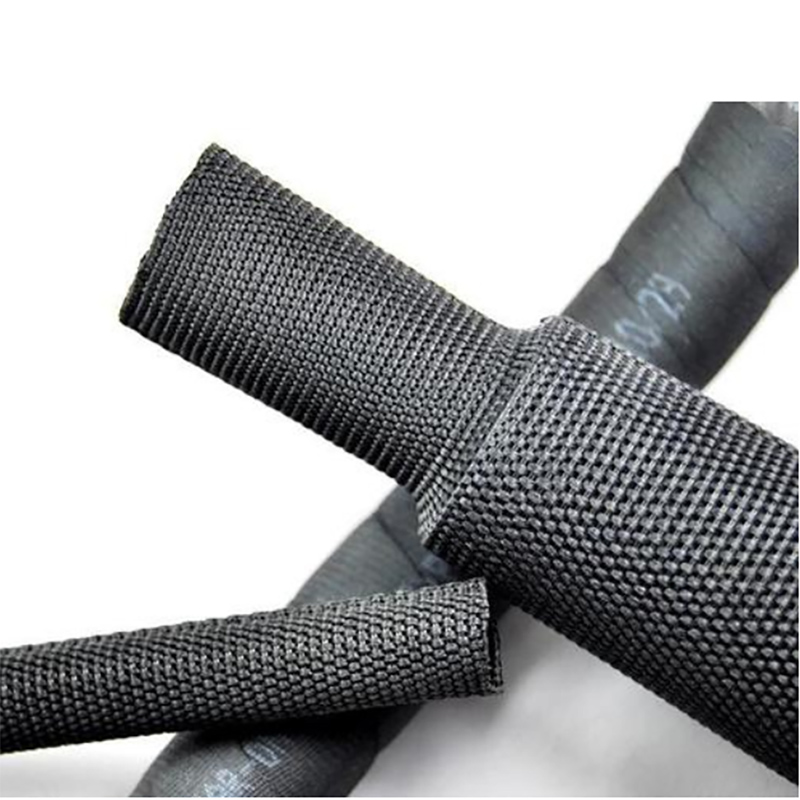

To understand the unique value of this material, we must examine its anatomy. Manufacturers create this hybrid by weaving two distinct polymer fibers together. The first fiber is a specially formulated polyolefin. Polyolefin reacts to heat by shrinking significantly. The second fiber is a rugged polyester. Polyester does not shrink, but it provides superior resistance against mechanical wear. When you apply heat, the polyolefin contracts. It pulls the structural polyester fibers closer together.

This dual-material construction leads to excellent performance outcomes. The sleeve shrinks to grip irregular shapes tightly. Yet, it never turns into a rigid plastic shell. The interwoven polyester prevents the material from solidifying completely. Instead, it maintains a highly resilient, fabric-like feel. Cables inside can still bend, twist, and flex freely.

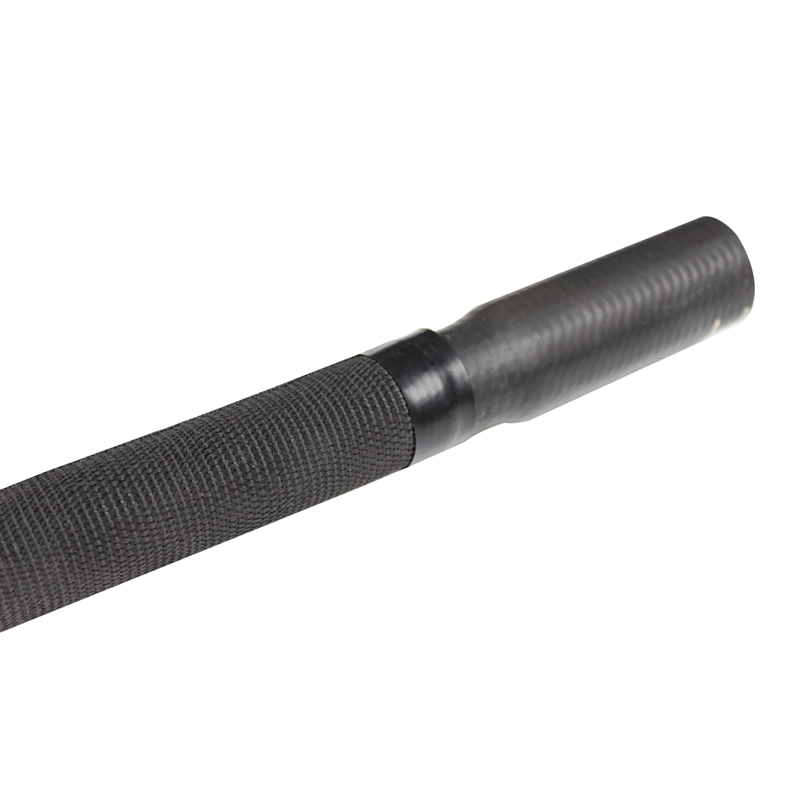

Procurement teams are rapidly transitioning away from traditional installation methods. In the past, securing a wire harness required two steps. Workers would slide standard expandable sleeving over the wires. Then, they would apply solid heat shrink end-caps to hold the sleeving in place. A single heat-shrinkable woven sleeve replaces this tedious process. It anchors itself directly onto the cables. You eliminate extra parts, reduce assembly time, and prevent ugly fraying.

Core industrial applications: Where the specs align with the environment

Specific industries demand components that endure intense physical stress. You will rarely find this specialized hybrid sleeve in static, climate-controlled server racks. Instead, it dominates environments characterized by motion, vibration, and friction.

• Automotive wire harnesses: Modern vehicles pack complex wiring into extremely tight chassis cavities. Normal plastic tubing rattles against metal frames during vehicle operation. This hybrid fabric dampens vibrations perfectly. It acts as an acoustic buffer. Engineers rely on it heavily for rattle suppression and noise reduction behind dashboards and under the hood.
• Aerospace and heavy machinery: Aircraft and industrial tractors require cables to route around highly complex geometries. Bulkheads often feature sharp corners. If you use standard solid tubing, continuous vibration will cause it to kink or stress the internal wires. The woven alternative curves smoothly around 90-degree bends without compromising the bundle's integrity.
• Custom hose and tube protection: Fluids and gases constantly move through industrial engines. Rubber cooling lines frequently rub against surrounding metal components. You can deploy abrasion-resistant braided sleeving over these hoses. It prevents chafing perfectly. Importantly, the flexible weave does not restrict the natural expansion and contraction of fluid flow mechanics.

Decision framework: Heat shrinkable braided vs. Standard alternatives

Flexibility and routing

Standard solid heat shrink tubing becomes highly rigid after recovery. If you install it on a robotic arm, the continuous dynamic movement creates metal fatigue. Eventually, the solid plastic shell is prone to cracking.

Conversely, the hybrid woven material retains high flexibility post-shrink. It maintains an open, breathable weave. The sleeving actively moves with the cable bundle. This dynamic performance makes it the ideal requirement for flexible heat shrinkable sleeving applications. You can safely bend the protected harness millions of times without material failure.

Abrasion and mechanical defense

You might consider standard braided solutions for mechanical defense. Expandable braided sleeving offers fantastic abrasion resistance. However, it operates loosely. If workers do not terminate it perfectly, the material can bunch up. It slides down the cable, leaving critical wire sections fully exposed to danger.

The heat-shrinkable variant solves this slippage completely. Because the polyolefin fibers contract, the sleeve locks directly onto the underlying substrate. It eliminates sliding entirely. Simultaneously, the polyester fibers maintain a high-level mechanical defense against accidental cutting and severe chafing.

Environmental and fluid protection (The Trust Factor)

We must clarify a crucial limitation of this product. The woven fabric construction is highly porous. You can physically see tiny gaps between the intersecting fibers. Therefore, it allows moisture, lubricating oils, and caustic gases to pass straight through to the internal wires.

Here is the final verdict for fluid environments. Do not use woven sleeves for waterproof sealing. If you need true environmental isolation, you must specify solid adhesive-lined tubing. However, use the woven shrink sleeving when drainage matters. The porous nature prevents condensation from pooling inside the harness. It also facilitates excellent thermal dissipation for high-current cables.

Table: Sleeving Alternatives Comparison

Technical specifications for procurement evaluation

Temperature thresholds and compliance

Engineers must carefully match operating temperatures to the application environment. Standard functional ranges for these woven sleeves generally span from -40°C to 125°C. Some premium formulations can withstand constant exposure up to 150°C. Exceeding these limits causes the polyolefin to degrade rapidly.

You must also scrutinize specification sheets for industry compliance standards. Look for Halogen-free properties if routing cables in enclosed passenger spaces. Ensure the product holds RoHS compliance to meet global environmental regulations. For automotive applications, the material must pass MVSS 302 flammability tests.

Flame resistance requires special attention. Identify exactly when your project demands a flame-retardant heat shrinkable sleeve. Critical engine bay routings and commercial aerospace harnesses mandate self-extinguishing properties. Standard polyester fibers will burn. Specially treated variants extinguish flames quickly, preventing catastrophic fire spread.

Shrink ratios and dimensional planning

Most woven shrink sleeves offer a standard 2:1 shrink ratio. This means the sleeve will contract to roughly half of its original internal diameter when fully heated. Proper dimensional planning ensures a successful installation.

Follow these numbered steps to calculate your dimensions:

1. Measure the widest component your sleeve must pass over. This is usually a bulky connector or terminal housing.
2. Select a pre-shrink inner diameter (ID) that is at least 10% larger than your widest measurement.
3. Measure the diameter of the bare cable bundle itself.
4. Verify the fully recovered ID of the sleeve is slightly smaller than your cable bundle. This guarantees a tight, vibration-free grip.

You must also account for longitudinal shrinkage. Unlike solid tubing, the woven matrix compresses as it tightens. Expect a 10-15% length reduction post-heating. Engineers must incorporate this reduction factor directly into their cut lists. Otherwise, the final installed sleeve will be too short.

Implementation realities: Installation guidelines and risks

Laboratory specifications mean nothing without proper shop floor execution. Implementation realities often dictate project success. You must address cutting, heating, and joining techniques properly.

• Cutting tools: Cold cutting this fabric leads to catastrophic fraying. Scissors or standard wire cutters leave loose polyester ends. These fibers unravel rapidly during handling. We highly recommend using hot-knife tooling. A hot knife cleanly slices through the material and instantly fuses the fiber ends together.
• Heating protocols: Proper technique requires specific equipment. A standard industrial heat gun works well for manual assemblies. High-volume production lines should utilize controlled infrared ovens. These ovens ensure even heat distribution across the entire harness.
• The melting risk: Warn assembly technicians against applying concentrated, stationary heat. A heat gun held in one spot will quickly exceed safe temperatures. It can melt the polyester fibers rather than simply shrinking the polyolefin. This mistake entirely compromises the physical integrity of the protective layer. Always keep the heat source moving in smooth, sweeping motions.
• Overlapping and joining: Continuous cable runs often require multiple sleeve segments. Follow best practices for overlapping. Overlap adjoining pieces by at least two inches. Ensure the upstream segment overlaps over the downstream segment. This prevents snagging during harness installation.

Conclusion

This hybrid sleeving represents a major leap in cable management technology. It completely eliminates the frustrating tradeoff between flexible movement and secure anchoring. The unique polyolefin and polyester weave delivers unparalleled vibration dampening. It provides robust mechanical defense while conforming perfectly to complex harness shapes. It stands out as a premium, specialized solution tailored specifically for dynamic, high-vibration, and high-abrasion environments.

To integrate this technology successfully, follow these action-oriented next steps:

• Request engineering samples from suppliers to conduct physical flexibility and abrasion tests in your specific environment.
• Review all spec sheets carefully to ensure the material exceeds your project's maximum temperature thresholds.
• Verify your internal tooling capabilities. Ensure your assembly floor possesses adequate hot knives and regulated heat guns before authorizing bulk procurement.
• Calculate dimensional cut lists factoring in the mandatory 10-15% longitudinal shrinkage.

FAQ

Q: Does heat shrinkable braided sleeving provide a waterproof seal?

A: No. The woven structure allows moisture and fluids to drain and evaporate. It does not block water. For waterproof sealing, you must use solid adhesive-lined heat shrink tubing.

Q: Can it be easily removed after it is shrunk?

A: It must be carefully cut away; it does not expand back to its original size. Technicians use specialized hook blades to safely slice the material without damaging internal wires.

Q: What is the standard shrink ratio for woven heat shrink?

A: The industry standard is typically a 2:1 shrink ratio, though longitudinal shrinkage of up to 15% must also be accounted for during planning.

Q: Will the ends fray after shrinking?

A: If cut with scissors, yes. The mechanical action pulls the fibers apart. Always use a hot knife to fuse the fibers before applying heat to the harness.
