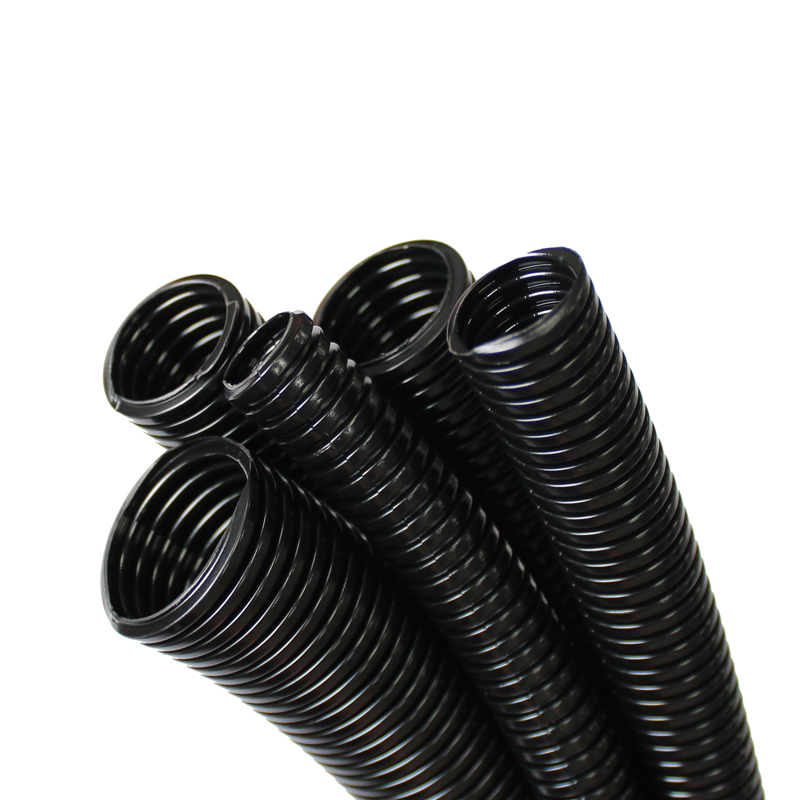

PP vs PA Corrugated Conduit: Which Material Is Better for Wire Harness Protection?

Wire harness failures in industrial and automotive applications cause massive operational disruptions. Abrasion, vibration, moisture ingress, and environmental exposure constantly threaten electrical systems. Specifying the correct protective sleeving solves this engineering challenge. Over-specifying inflates bill-of-materials costs unnecessarily. Under-specifying leads to catastrophic electrical failures, system downtime, and severe warranty claims. You need a reliable solution to shield vital components from harsh physical and chemical environments. The industry relies heavily on two standard non-metallic materials: Polypropylene (PP) and Polyamide (PA/Nylon). The choice between these two polymers dictates the thermal, mechanical, and chemical resilience of your entire wire harness project. Understanding how PP vs PA corrugated conduit performs under stress ensures your electrical routing remains secure, compliant, and operationally efficient.

• Thermal Thresholds Dictate Application: PA (Polyamide) significantly outperforms PP in high-temperature environments (often rated up to 120°C–150°C), making it mandatory for engine compartments and high-heat industrial zones.

• Mechanical Resilience vs. Flexibility: PA offers superior crush resistance and impact strength, whereas PP provides excellent flex fatigue resistance at a lower weight and cost.

• Chemical Exposure Realities: Both materials resist automotive fluids, but PP offers superior resistance to strong acids and alkalis, while PA excels against fuels, oils, and petrochemical solvents.

• Cost-to-Performance Ratio: PP corrugated pipe is the standard for cost-sensitive, general-purpose routing, while PA is reserved for mission-critical, high-stress applications where failure is not an option.

The Role of Flexible Corrugated Conduit in Wire Harness Protection

Protecting electrical wiring requires meeting strict physical and environmental criteria. A reliable corrugated conduit for wire harness application must provide absolute mechanical shielding against crush and impact forces. It must resist continuous abrasion while preventing moisture and dust ingress. Ease of installation also matters significantly, driving the choice between split and non-split profiles. Engineers must evaluate the specific physical threats present in the installation environment before selecting a protective sleeve. Point loads, shear forces, and continuous friction quickly destroy unprotected wiring insulation, leading to short circuits and signal degradation.

Engineers often compare flexible corrugated conduit with alternatives like heat-shrink tubing and braided sleeving. Heat-shrink provides an excellent environmental seal and conforms tightly to the wire bundle. However, it becomes entirely rigid after installation, making future modifications nearly impossible. Corrugated conduit maintains dynamic flexibility and offers vastly superior crush protection due to its ribbed geometric structure. Braided sleeving expands easily to accommodate large bundles and allows for heat dissipation, but it lacks the structural defense required against heavy impacts or sharp edges.

Modern engineering heavily favors non-metallic solutions over traditional metal conduits. Plastic variants reduce overall assembly weight significantly, a major factor in automotive and aerospace design. They offer complete immunity to rust and galvanic corrosion. Non-metallic conduits also dampen vibration effectively, preventing the transmission of mechanical resonance to sensitive electrical connectors. Furthermore, the inherent flexibility of polymer conduits simplifies routing through tight, complex spaces without requiring specialized bending tools.

1. Mechanical Shielding: The conduit must absorb blunt force impacts and resist compressive loads without transferring the stress to the internal wires.

2. Abrasion Resistance: The outer wall must withstand continuous friction against metal chassis components, brackets, and moving machinery parts.

3. Ingress Protection: When paired with appropriate fittings, the conduit system must seal out water, oils, and conductive dust.

4. Routing Flexibility: The material must bend around tight radii without kinking, collapsing, or stressing the internal wire bundle.

5. Installation Efficiency: The profile design should support rapid assembly, utilizing split variants for retrofitting or solid variants for maximum sealing.

PP Corrugated Pipe: Characteristics, Strengths, and Limitations

Polypropylene (PP) serves as a lightweight, highly flexible thermoplastic polymer. It stands as the go-to choice for general-purpose cable routing across numerous sectors. The molecular structure of polypropylene provides a unique balance of toughness and pliability. PP corrugated pipe balances reliable physical protection with high manufacturing efficiency, making it a staple in large-scale assembly operations.

The core advantages of specifying polypropylene center on its dynamic capabilities and chemical resistance. High flexural fatigue life allows it to resist cracking under repeated bending cycles. This makes it highly suitable for doors, hinges, and moving panels. Excellent moisture barrier properties ensure zero hygroscopy. The material will not absorb ambient humidity, preventing unwanted dimensional swelling or weight increases. PP also demonstrates strong resistance to aqueous solutions, strong acids, and bases. It easily handles exposure to cleaning agents and industrial washdowns.

Despite its versatility, polypropylene possesses specific engineering limitations. It features a lower continuous operating temperature, typically maxing out around 100°C to 105°C. Exposure to heat beyond this threshold causes the polymer chains to soften, leading to structural deformation. PP also becomes brittle in extreme sub-zero temperatures unless specifically modified with elastomeric additives. Finally, it offers lower overall crush resistance and tensile strength compared to engineered polyamides, meaning it cannot withstand heavy static loads or severe blunt impacts.

PA Corrugated Pipe: Characteristics, Strengths, and Limitations

Polyamide (PA) is an engineering-grade thermoplastic renowned for its ruggedness and thermal stability. The industry primarily utilizes two distinct variations. PA6 delivers high strength and exceptional heat resistance for static routing. PA12 offers premium flexibility and lower moisture absorption, making it the standard for advanced robotics. PA corrugated pipe handles the most demanding environments where lesser plastics would instantly fail.

The core advantages of polyamide make it indispensable for mission-critical applications. Exceptional mechanical strength delivers high impact and crush resistance, protecting internal wires from heavy falling objects or tight compressive forces. The broad thermal operating range spans from -40°C to +120°C, with short-term peaks reaching up to 150°C. Superior self-extinguishing and flame-retardant properties ensure strict compliance for rail, aerospace, and automotive safety standards. Furthermore, PA provides high resistance to petrochemicals, UV radiation in black variants, and severe mechanical abrasion.

Engineering limitations for polyamide primarily revolve around environmental interactions and material stiffness. PA6 absorbs trace moisture due to its hygroscopic nature. This absorption can affect dimensional stability and slightly alter mechanical properties in unsealed, highly humid environments, though specifying PA12 entirely mitigates this issue. Polyamide is also slightly heavier and stiffer than standard polypropylene. Routing thick PA conduits through extremely tight radii requires careful planning to avoid stressing the internal wire bundle or the conduit wall.

PP vs PA Corrugated Conduit: Head-to-Head Technical Evaluation

Comparing these materials directly reveals distinct operational boundaries. Continuous operating temperatures separate the two polymers immediately. PA easily withstands extreme heat environments found near exhaust manifolds or industrial furnaces. PP degrades rapidly when ambient temperatures exceed 105°C. Cold-impact strength also highlights a major difference. PA maintains structural integrity at -40°C, preventing shattering upon impact during winter operations. PP requires special elastomeric additives to survive similar freezing conditions without cracking.

Mechanical strength testing shows clear divergence in how each material handles physical stress. Crush resistance metrics strongly favor PA. It handles heavy static loads, such as being stepped on or compressed by machinery panels, without permanently deforming. However, PP provides a superior continuous flexing lifecycle in its standard formulation compared to standard PA6. This makes PP ideal for standard dynamic routing where constant, repetitive movement occurs, provided the mechanical loads remain relatively light.

Chemical compatibility dictates specific use cases for each polymer. PA handles oils, diesel fuels, and harsh petrochemical solvents effortlessly. PP excels when exposed to strong acids, alkalis, and aggressive cleaning chemicals. Outdoor deployment requires specialized UV stabilization for both materials. Carbon black additives improve weathering resistance significantly. However, PA inherently resists UV degradation better over long periods, maintaining its tensile strength even after years of direct solar exposure.

Application-Specific Selection Framework

Different sectors demand specific material properties to ensure long-term reliability. In the automotive and transportation sector, engine bays strictly mandate PA. The high heat, constant vibration, and inevitable petrochemical exposure destroy lesser materials quickly. For cabin interiors and chassis routing, PP typically suffices. It provides adequate protection against minor abrasions while reducing overall vehicle weight. Using PP in these low-risk zones streamlines manufacturing and keeps assembly processes highly efficient.

Industrial automation and robotics present unique mechanical challenges. Standard dynamic drag chains utilize PP for normal, predictable flex cycles. However, high-speed, continuous multi-axis movements require specially formulated PA12. Standard PA6 would fatigue and crack under these extreme, twisting robotic applications. Heavy machinery and welding environments strictly require PA. The material provides necessary impact resistance against dropped tools and deflects heat and welding slag effectively without melting.

Outdoor and harsh environments demand rugged, weather-resistant solutions. Solar arrays, railway infrastructure, and heavy construction equipment face relentless weathering. UV-stabilized PA serves these industries perfectly. It delivers superior impact resistance against flying debris and survives decades of direct sunlight exposure without turning brittle. For offshore marine applications where salt spray is constant, both materials perform well, but PA offers the added durability needed for heavy deck machinery.

• Automotive Under-Hood: Specify PA6 for high thermal stability and resistance to engine oils, brake fluids, and coolants.

• Automotive Cabin Interior: Specify PP to reduce vehicle weight, lower material costs, and provide adequate abrasion protection for dashboard wiring.

• Multi-Axis Robotics: Specify PA12 to ensure millions of flex cycles without material fatigue, while maintaining resistance to factory floor lubricants.

• Railway and Transit: Specify flame-retardant PA6 to meet strict EN 45545-2 fire safety standards and ensure passenger safety in enclosed carriages.

• Solar and Outdoor Infrastructure: Specify UV-stabilized PA or heavily modified UV-PP to prevent solar degradation and embrittlement over a 20-year lifespan.

Sourcing and Implementation Risks

Selecting the right material solves only half the engineering challenge. Working with a reputable corrugated conduit manufacturer ensures material purity and consistency. You must avoid suppliers using regrind or recycled plastics. Regrind materials compromise mechanical integrity, introduce weak points in the corrugation profile, and drastically reduce flex life. Always request technical data sheets and compliance certifications. Verify UL, RoHS, REACH, and EN 45545-2 standards for rail applications before approving any material for production.

Many complex projects require custom corrugated conduit to meet specific design constraints. You might need split profiles for retrofitting existing harnesses without disconnecting terminals. High-voltage EV lines often require specific orange color-coding to warn technicians of electrical hazards. When ordering custom extrusions, carefully consider lead times and minimum order quantities. Custom profiles require dedicated tooling and precise calibration of the corrugator speed and cooling baths.

System compatibility ensures long-term reliability and environmental protection. The chosen conduit must match the IP-rating requirements of the entire assembly. Fittings, glands, O-rings, and connectors must integrate seamlessly with the specific corrugation profile. A mismatched component compromises the entire seal. If a fitting does not grip the conduit tightly, vibration will eventually pull it loose, allowing moisture and dust to destroy the protected wiring.

Conclusion

• Audit your environmental operating parameters, documenting exact temperature peaks, chemical exposures, and expected flex cycles before specifying a material.

• Map out your routing paths to determine where split profiles are necessary for rapid retrofitting versus solid profiles for maximum ingress protection.

• Consult with a certified manufacturer to request material samples and conduct physical stress tests within your actual assembly environment.

• Verify that all associated fittings, glands, and connectors match the IP rating of your selected conduit material to guarantee a fully sealed system.

FAQ

Q: How does UV exposure affect unformulated PP corrugated conduit?

A: Direct sunlight degrades standard polypropylene rapidly. UV radiation breaks down the polymer chains, causing the conduit to become brittle and crack under minimal stress. You must specify PP conduit manufactured with UV-stabilized carbon black additives for any outdoor application to ensure long-term structural integrity.

Q: Can PP corrugated conduit be used in engine compartments?

A: No. Engine compartments generate ambient temperatures that easily exceed the 105°C continuous operating limit of standard polypropylene. Exposure to this extreme heat causes PP to soften, deform, and eventually fail. You must use polyamide (PA) for under-hood routing due to its superior thermal stability.

Q: Which conduit material is better for continuous flexing in robotics?

A: Standard PP offers excellent flex life for basic dynamic movements. However, specialized PA12 is the superior choice for advanced robotics. PA12 handles continuous, high-speed, multi-axis flexing without fatiguing. It maintains structural integrity over millions of cycles while resisting oils and chemicals found in automated manufacturing cells.

Q: Are PA and PP conduits flame retardant?

A: Both materials can be manufactured to resist ignition. However, PA naturally achieves higher flame-retardant ratings much easier than standard PP. PA frequently meets strict UL94 V-0 standards. Its self-extinguishing properties make it the mandatory choice for enclosed spaces, passenger rail cars, and aerospace applications.

Q: What is the difference between PA6 and PA12 corrugated conduit?

A: PA6 provides exceptional mechanical strength, high heat resistance, and excellent crush protection, but it absorbs trace amounts of moisture. PA12 offers superior flexibility, exceptional low-temperature impact resistance, and minimal moisture absorption. Engineers choose PA6 for heavy-duty static protection and PA12 for dynamic, continuous-flex applications.

Q: How do I choose between split and non-split corrugated conduit?

A: Split conduit features a longitudinal slit, allowing you to install it over existing wire harnesses rapidly. It is perfect for retrofitting and maintenance. Non-split conduit provides a continuous, unbroken barrier. You must route wires through it during initial assembly. Non-split profiles guarantee maximum ingress protection against moisture and dust.
