Heat Shrinkable Braided Sleeving Vs Traditional Wrap: Cost Comparison

Managing complex wire harnesses in extreme environments requires balancing immediate project budgets against long-term durability. We see this constant struggle across off-road vehicle manufacturing, live sound staging, and heavy industrial automation. Engineering teams often compromise on physical protection to meet strict initial cost targets. While traditional wire wraps offer low entry pricing, the true financial impact of wire management runs much deeper. It includes extensive manual labor, bloated installation time, and severe failure-induced downtime. Cheap upfront components frequently hide massive maintenance expenses later.

This guide breaks down the overall lifecycle expenses between advanced shrinkable woven solutions and basic traditional wraps. We provide a clear, practical evaluation framework. This helps procurement officers and engineering teams align on smarter sourcing decisions. You will learn exactly when to spend more upfront to save thousands down the line.

Key Takeaways

• Upfront vs. Overall Cost: Traditional wraps win on initial material cost, but heat shrinkable braided options often yield a lower overall cost in high-vibration or high-abrasion environments.

• Labor Efficiency: The high expansion ratio of braided sleeving reduces installation time and limits the number of SKUs required in inventory.

• Maintenance Trade-offs: While highly durable, heat shrink solutions introduce higher rework costs if harness modifications are frequently required compared to split-loom or self-closing wraps.

• Application Dictates ROI: The premium cost of woven heat shrink is justified in motorsports, aerospace, and heavy-duty 4WD applications, but may be overkill for static, low-risk routing.

Problem Framing: Beyond the Upfront Price Tag

Wiring failures cause massive operational headaches. Abrasion rubbing against chassis metal destroys cables quickly. Extreme ambient heat melts standard vinyl jackets. Fluid exposure causes dangerous electrical shorts. These failures lead directly to catastrophic equipment breakdown. You then face costly diagnostic downtime. The underlying business problem extends far beyond simply replacing a damaged wire. You lose valuable production hours. You also risk damaging critical client relationships when equipment fails in the field.

Standard corrugated split loom creates a dangerous illusion of cheap materials. Basic vinyl tapes do the exact same thing. They boast an incredibly low per-foot cost. Procurement teams love these numbers initially. However, these materials degrade rapidly under harsh UV light. Ambient engine heat and constant physical stress break them down quickly. They crack, peel, and expose sensitive inner wires.

Upgrading to woven, shrinkable solutions addresses this physical degradation directly. It stops the environmental damage before it starts. However, you must justify a higher initial procurement budget to your stakeholders. We find engineering teams often struggle to articulate this financial trade-off. They focus entirely on technical specifications. You need a broader financial perspective. We will show you how to build a robust business case based on total lifecycle efficiency.

Material and Acquisition Cost Comparison

We must evaluate material acquisition directly. Traditional wraps include standard split loom and basic vinyl tape. A standard extruded Heat Shrink Sleeve often falls into this category for general-purpose sealing tasks. These items carry commodity-level pricing structures. You can secure steep volume discounts easily. Suppliers stock them globally in massive quantities. However, these cheap materials create higher physical waste. Rigid sizing demands precise diameters for every single harness section. You end up purchasing dozens of specific sizes. You must manage a bloated inventory system just to build one complex harness.

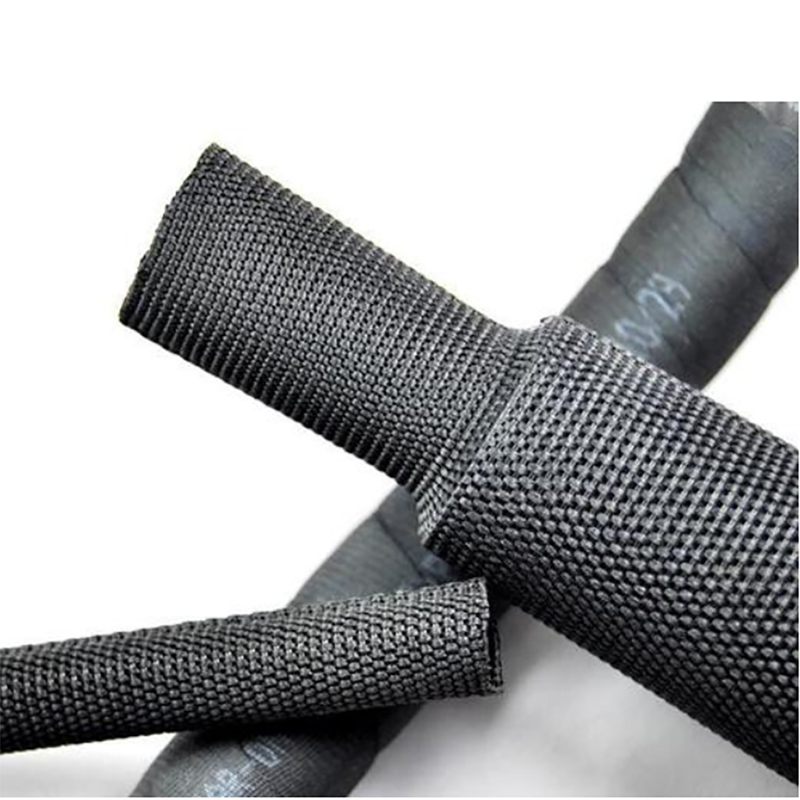

Alternatively, Heat Shrinkable Braided Sleeving carries premium upfront pricing. This higher cost stems from its complex hybrid PET and polyolefin woven construction. It requires highly specialized manufacturing processes. However, this premium material directly reduces your hidden inventory costs.

High expansion ratios commonly reach 2:1 or even 3:1. This means you can cover multiple bundle diameters using just one single SKU. You slash warehousing complexity immediately. You lower your ordering overhead drastically. You free up valuable shelf space in your facility. We see many OEM facilities cut their sleeving SKU count by half after transitioning.

Labor Costs: Installation and Routing Efficiency

Time heavily dictates your final assembly expenses. Manual wrapping wastes valuable production hours. Traditional taping proves incredibly labor-intensive. Rigid loom routing requires frequent, manual zip-tying. You must constantly tape off ends to secure the runs properly. This invites repetitive strain injuries among assembly workers. It slows down your entire line predictably.

Slide-and-shrink methods change this workflow completely. The woven shrinkable material slides easily over irregular splices. It effortlessly clears bulky connectors before shrinking tightly against the wire bundle. You eliminate the need for endless zip ties. This process immediately cuts your assembly time. We track significant speed improvements in high-volume shops.

We must also factor in specific tooling and process assumptions. Your shop needs proper preparation to maximize these labor savings. Consider the following installation requirements:

1. Thermal Cutting Tooling: You need hot knives to cut the woven material cleanly. This prevents edge fraying before installation.

2. Heating Equipment: You require industrial-grade heat guns or heating tunnels to activate the shrink properties evenly.

3. Worker Training: Operators need basic training to avoid scorching the underlying wire insulation during the shrinking phase.

These tools represent an upfront capital expense. You must train staff to use them safely. However, OEM harness manufacturing data provides clear evidence here. Labor savings at scale typically offset the increased material cost during the very first production run. Your workers finish harnesses faster. They produce more units per shift. The initial tooling investment pays for itself rapidly.

Long-Term Durability and Replacement Costs

High-stress performance completely separates premium materials from budget options. Automotive, off-road, and live sound applications demand extreme resilience. Traditional wraps crack in extreme engine bay temperatures. They become brittle and snap over time. They also trap mud and moisture during heavy 4WD use. This trapped moisture corrodes wires silently from the inside out.

Braided options solve these environmental challenges completely. Their woven structure allows internal moisture to dissipate naturally. They resist aggressive crushing forces perfectly. This is absolutely critical for live sound stage cables under heavy foot traffic. They also withstand extreme friction effortlessly. They protect harnesses rubbing continuously against raw metal chassis parts.

We can visualize this performance difference through a simple durability scorecard chart:

However, you must carefully consider implementation risks and re-entry costs. Skeptics rightly point out one major workflow flaw. Thermal shrink products become inherently permanent after installation. Modifying a sealed harness requires cutting. You must completely replace the outer jacket. This drives up maintenance labor significantly if designs change frequently. You cannot simply unwrap it like tape. Therefore, always finalize your system design prior to wrapping. Avoid using permanent sleeving during early, active prototyping phases.

Decision Framework: Shortlisting the Right Solution

How do you choose the right product? Application context dictates your true return on investment. You must align your material choice with your specific environmental reality. We rely on a strict set of rules for this decision.

When to Specify Traditional Wraps

Basic loom and tape still hold value in certain controlled scenarios. You should opt for these materials under the following conditions:

• You operate in static, indoor environments with minimal movement.

• You are currently in prototype phases where wiring requires constant changes.

• Your project operates under strict, inflexible upfront material budgets.

• The harnesses remain safely enclosed behind permanent panels.

When to Invest in Heat Shrinkable Braided Sleeving

You should approve the premium budget for woven options when failure is not an option. Specify this material when you encounter:

• Environments featuring heavy vibration, frequent fluid exposure, or severe abrasion risks.

• Applications requiring professional aesthetics and incredibly tight routing constraints.

• Scenarios where long-term reliability and compliance standards heavily outweigh initial procurement costs.

• High-volume assembly lines seeking drastic reductions in manual installation times.

Conclusion

The cost comparison between these materials is never a simple per-foot metric. It represents a careful balance of material price against labor efficiency and lifespan reliability. Paying a premium for woven, shrinkable materials actively reduces your hidden inventory costs. It directly speeds up your assembly line. It dramatically lowers your risk of field failures.

You need to take immediate action to validate these savings. First, evaluate your specific application's field failure rate using current wraps. Next, calculate potential assembly labor savings per harness based on a slide-and-shrink workflow. Finally, request product samples directly from your supplier. Test the thermal cutting and shrinking workflows with your own team before committing to a massive bulk transition. This structured approach guarantees a profitable upgrade.

FAQ

Q: Does heat shrinkable braided sleeving cost more than a standard heat shrink sleeve?

A: Yes. The woven PET and polyolefin hybrid construction requires specialized manufacturing. This process is inherently more expensive than producing standard extruded tubing. However, it offers superior flexibility and extreme abrasion resistance. You pay a premium upfront, but you gain a product that conforms perfectly to irregular shapes and survives harsher physical environments.

Q: What is the labor difference in installing braided sleeving versus corrugated split loom?

A: Braided sleeving is generally faster to apply over complex connectors. Its high expansion ratio allows it to slide easily over bulky harness components. It requires basic heat application to secure permanently. Conversely, workers press split loom on manually. This seems fast initially, but the loom requires frequent taping or zip-tying to stay closed.

Q: Can you reuse or easily remove heat shrinkable braided sleeving once applied?

A: No. Once shrunk, the material provides a permanent, highly secure fit. You cannot unshrink it. If your application requires frequent access to wires for repairs, this permanent nature becomes a liability. In those specific scenarios, self-wrapping split braided sleeving provides a much more accessible alternative.
