>> Product Introduction

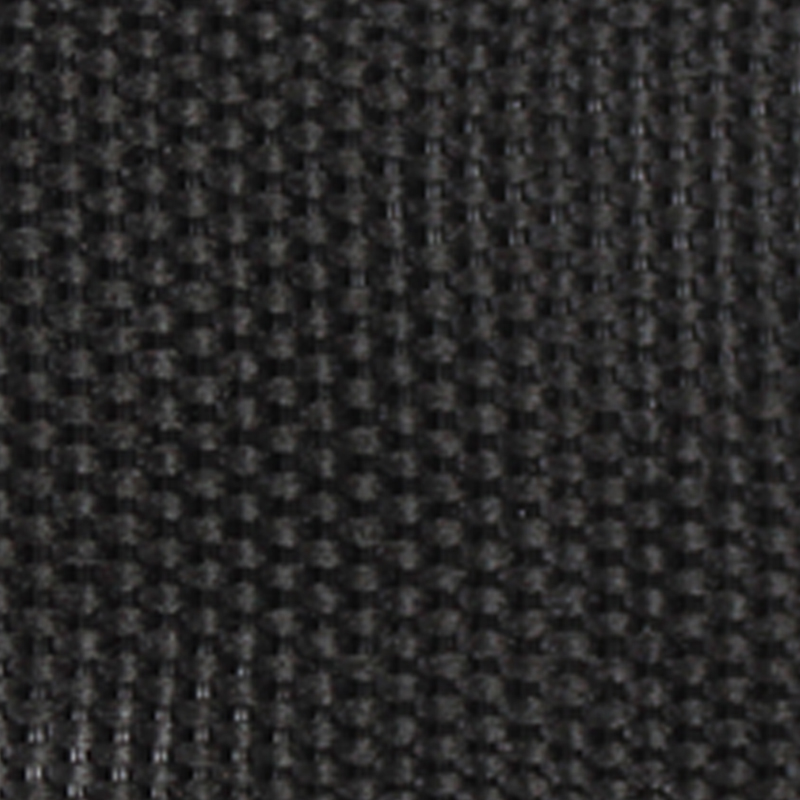

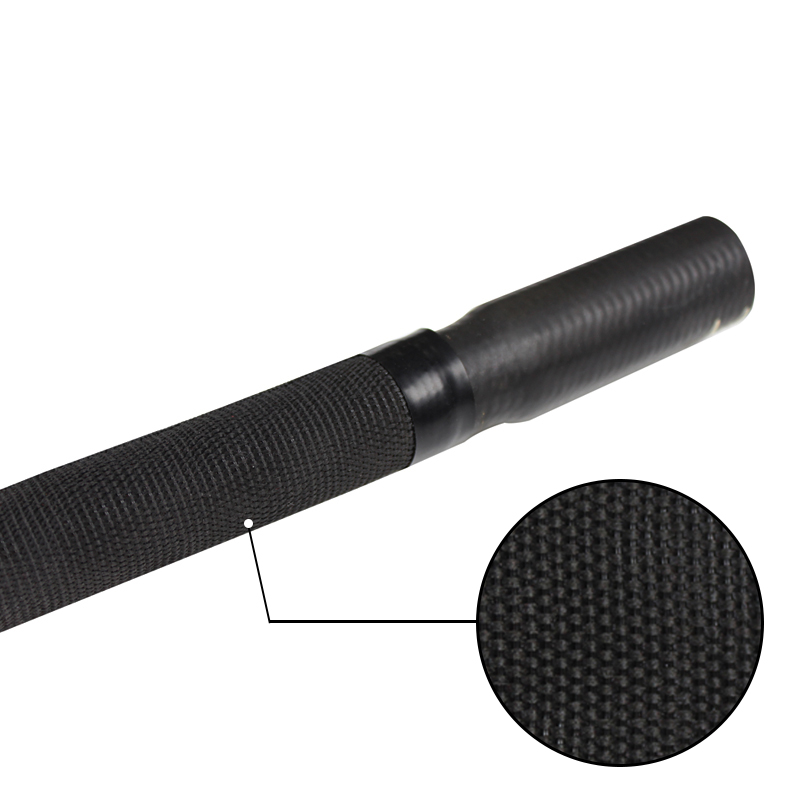

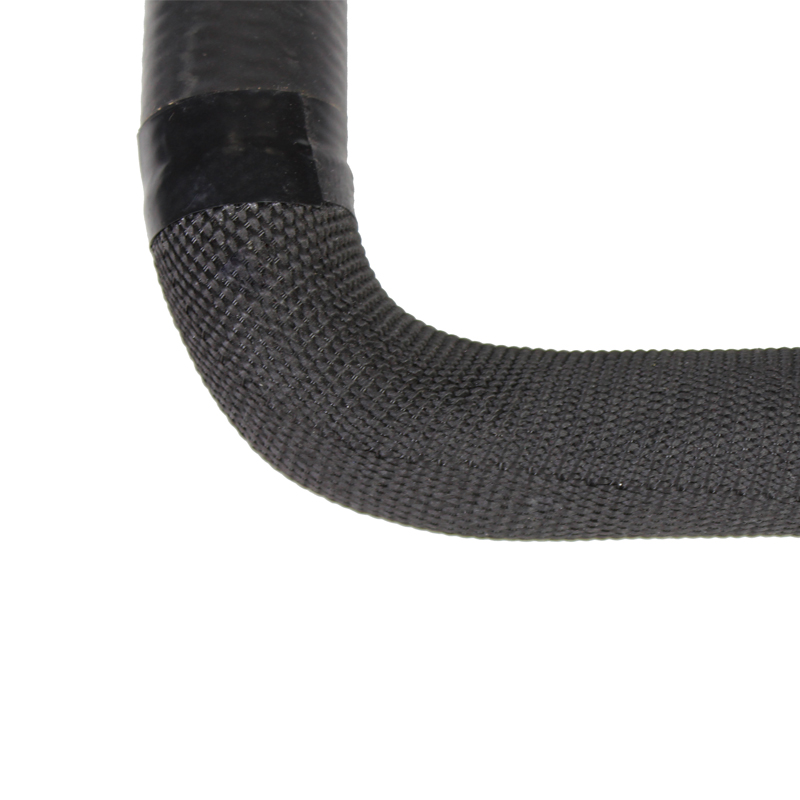

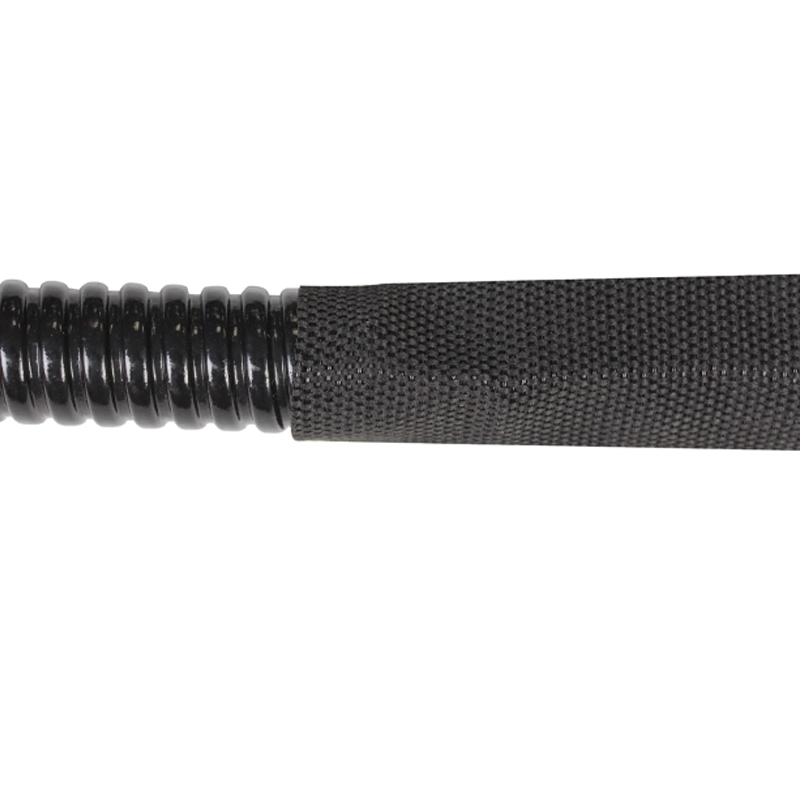

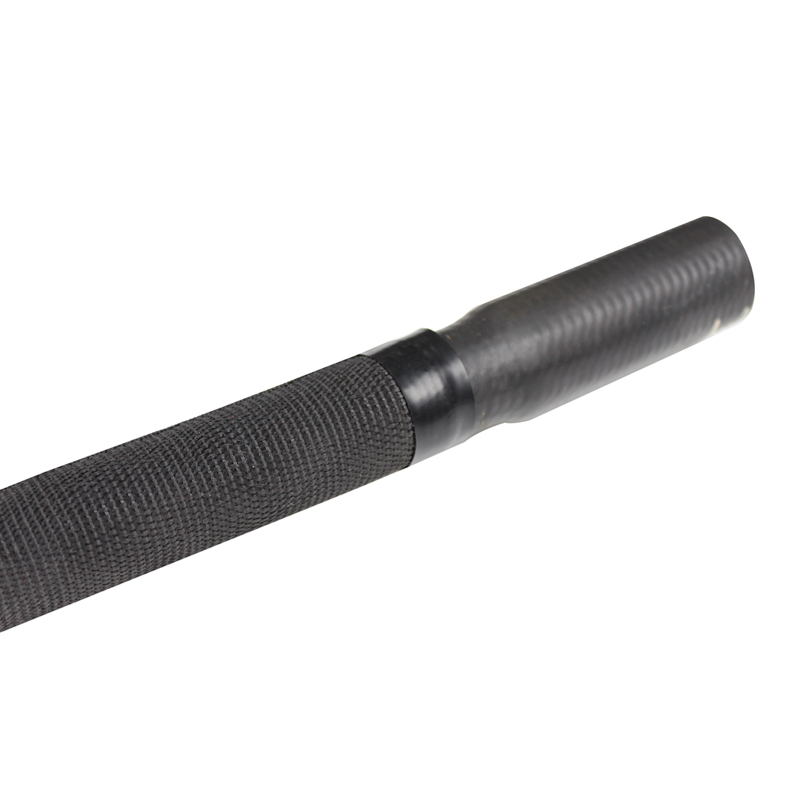

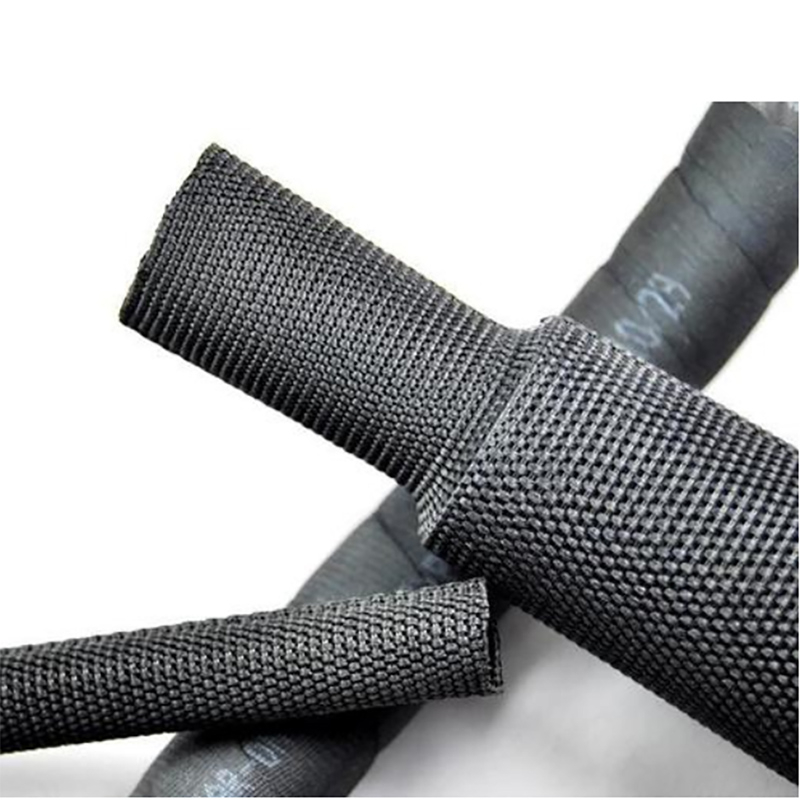

The heat-shrinkable braided tubeis made of Polyolefin monofilament + polyester fiber, heat-shrinked, and theunique braided structure makes the product very soft, making it easy toinstall on hoses and profiles. Excellent wear resistance and noise reduction.
>> Product Advantage
Product Name: Polyolefin monofilament + polyester fiber
Working temperature: -50°C-150°C
Standard color: Black
Certification: RoHS, Halogen Free
Cutting method: Scissors, cutting machine
Shrinkage ratio: 2:1
>> Technical Parameters
| Specification (mm) | Inner diameter before shrinkage (mm) | Inner diameter after shrinkage (mm) | Flat width (mm) | Packaging standards (M/R) |
| φ6 | 6 | 3 | 12±2mm | 100 |
| φ8 | 8 | 4 | 15±2mm | 100 |
| φ10 | 10 | 5 | 18±2mm | 100 |
| φ12 | 12 | 6 | 22±2mm | 100 |
| φ16 | 16 | 8 | 28±2mm | 100 |
| φ20 | 20 | 10 | 35±2mm | 50 |
| φ25 | 25 | 12.5 | 43±2mm | 50 |
| φ30 | 30 | 15 | 50±2mm | 50 |
| φ34 | 34 | 17 | 55±2mm | 50 |
| φ40 | 40 | 20 | 66±2mm | 50 |
| φ50 | 50 | 25 | 82±2mm | 50 |
| φ60 | 60 | 30 | 97±2mm | 50 |
| φ70 | 70 | 35 | 115±2mm | 25 |
| φ80 | 80 | 40 | 130±2mm | 25 |
| φ90 | 90 | 45 | 143±2mm | 25 |
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
