>> Product Introduction

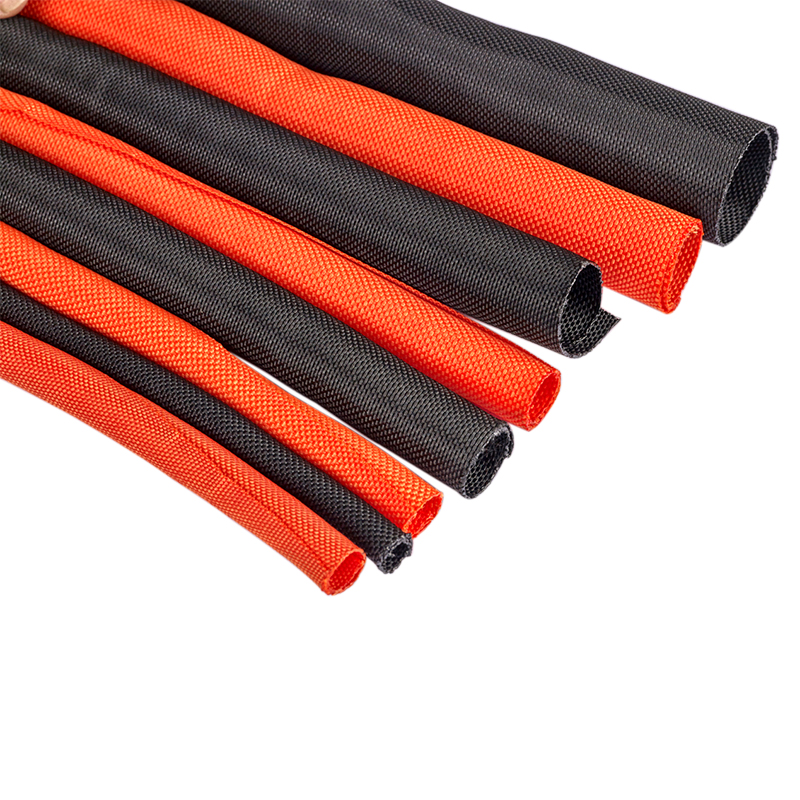

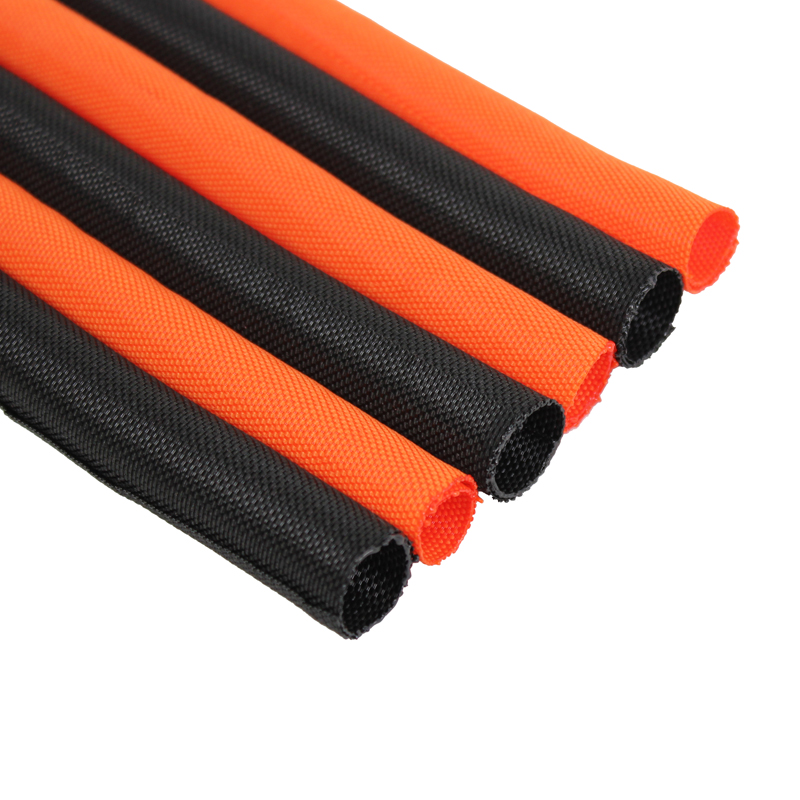

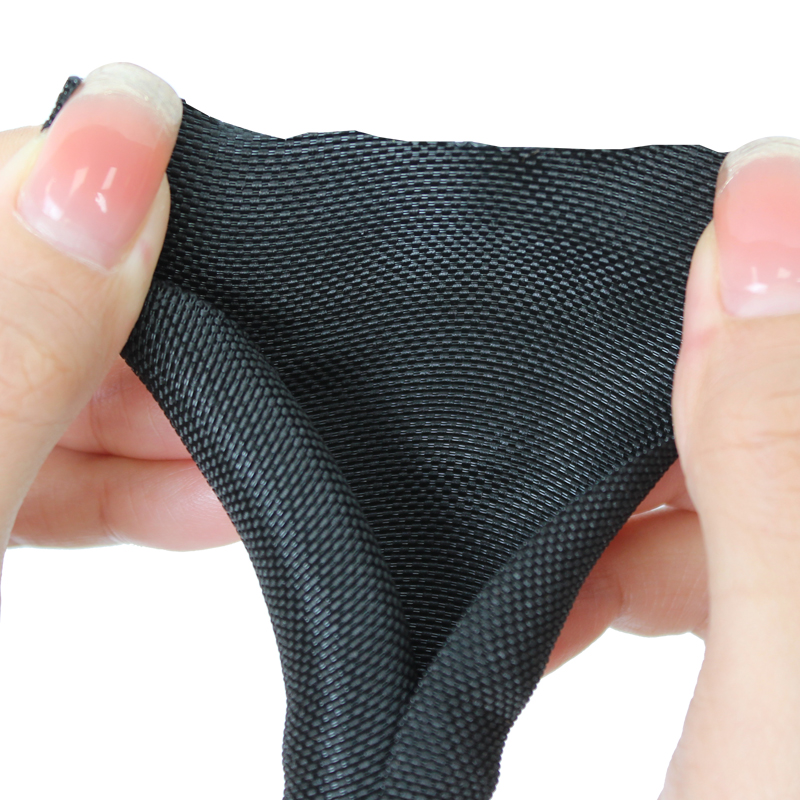

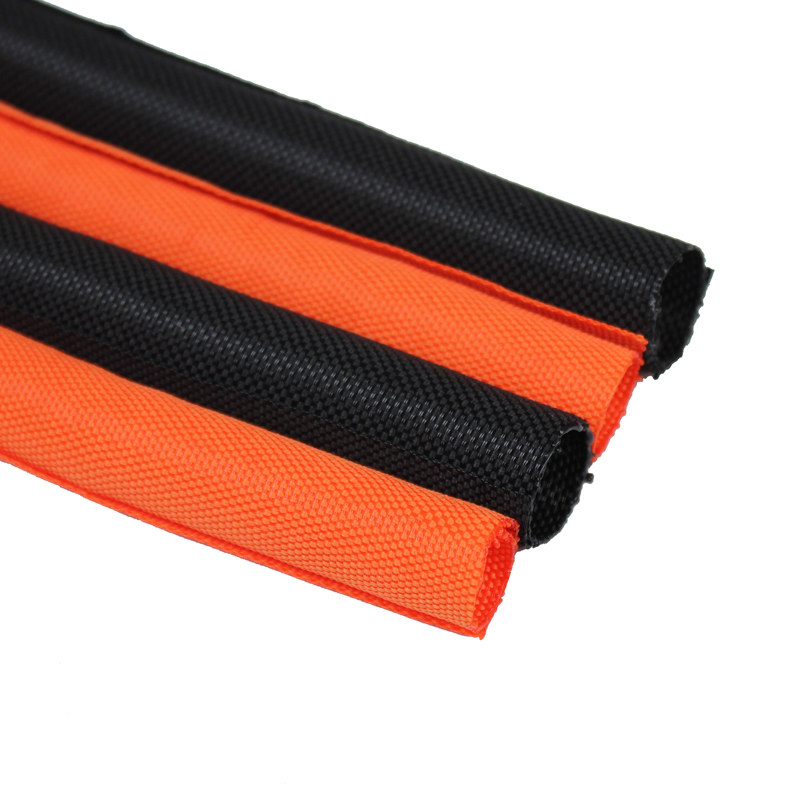

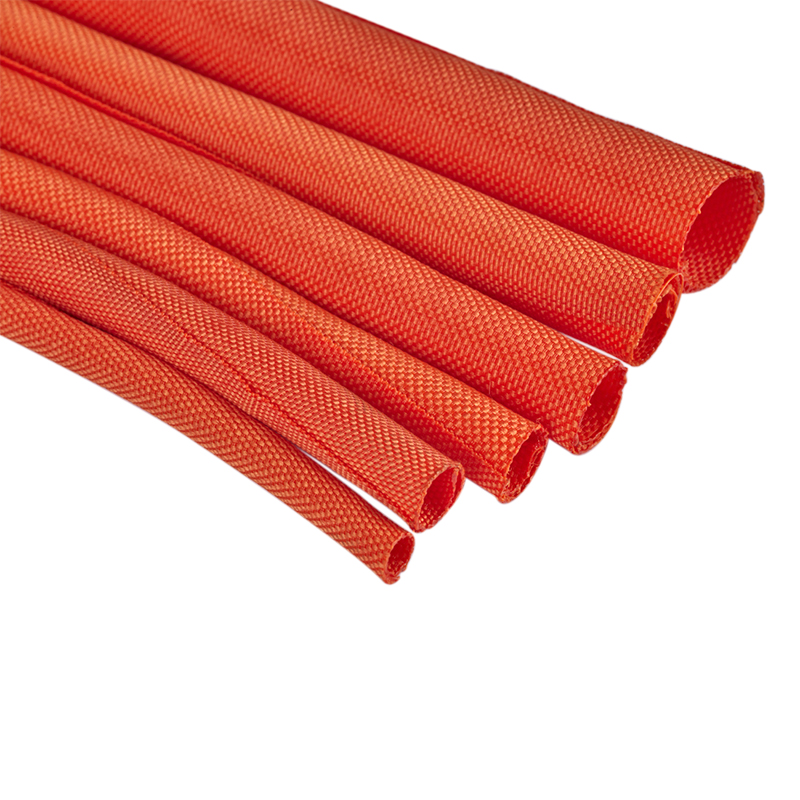

Polyester self-rolling textile sleeve is made of polyester monofilament and multifilament yarns, featuring a quarter-inch overlap that provides excellent flame retardancy, wear resistance, and heat dissipation. These sleeves are designed to wrap around plugs, connectors, and joints and can easily be folded and bent thanks to their inherent elasticity. Their open-ended design allows for easy addition or removal of wires without disassembly, facilitating modifications, reinstallation, maintenance, and inspection of the inner wiring harness.
>> Product Advantage
● Made of polyester monofilament & composite multifilament yarn, stable self‑wrapping overlap‑ratio 45%±5%
● Wide working temperature:‑40℃ ~ 150℃, melting point 240℃±10℃
● UL94‑V0 flame retardant grade, excellent abrasion performance up to ISO 6722 (1500 cycles without breaking)
● Self‑closing split design, convenient for harness rework, inspection without cutting finished cables
● Good heat‑dissipation performance for long‑term dynamic wiring scenarios
● RoHS2.0 environmental compliant
● Hot‑knife cutting for clean neat end surface
● Custom colors, sizes and printing services available for bulk‑volume orders
>> Technical Parameters
>> Technical Parameters
| Product Performance | Performance Indicators |
| Color | Black/Orange/Custom |
| Material | Polyester monofilament |
| + polyester compound filament | |
| Melting point | 240℃±10℃ |
| Applicable temperature℃ | -40℃～150℃ |
| Flame retardant grade | UL94-V0 |
| Abrasive resistance | ISO 6722（1500 times without breaking） |
| Environmental standards | RoHS2.0 |
| Cutting Tools | hot knife |

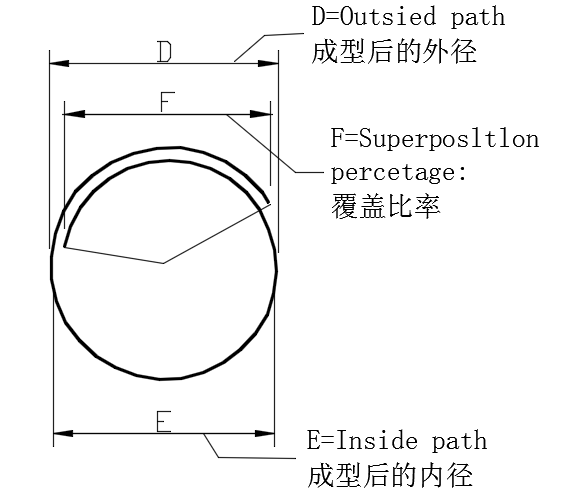

| Item No. | OD D | Overlap ratio F | finished width（mm) | Thickness(mm) |
| (mm) | ||||
| ZH-ZJ-3.0 | 5.5±1.0 | 45%±5% | 23±5 | 0.5±0.1 |
| ZH-ZJ-5.0 | 7.5±1.0 | 45%±5% | 30±5 | 0.6±0.1 |
| ZH-ZJ-8.0 | 10.0±1.0 | 45%±5% | 40±5 | 0.65±0.1 |
| ZH-ZJ-10 | 11.5±1.0 | 45%±5% | 50±5 | 0.65±0.1 |
| ZH-ZJ-13 | 15.0±1.5 | 45%±5% | 60±6 | 0.65±0.1 |
| ZH-ZJ-16 | 17.5±1.5 | 45%±5% | 78±6 | 0.65±0.1 |
| ZH-ZJ-19 | 21.0±1.5 | 45%±5% | 90±6 | 0.65±0.1 |
| ZH-ZJ-25 | 27.5±2.0 | 45%±5% | 110±8 | 0.65±0.1 |
| ZH-ZJ-29 | 31.0±2.0 | 45%±5% | 128±8 | 0.65±0.1 |
| ZH-ZJ-32 | 35.0±2.0 | 45%±5% | 140±8 | 0.65±0.1 |
| ZH-ZJ-38 | 42.0±2.0 | 45%±5% | 170±10 | 0.65±0.1 |
| ZH-ZJ-50 | 54.0±3.0 | 45%±5% | 245±10 | 0.65±0.1 |
| ZH-ZJ-50 | 54.0±3.0 | 45%±5% | 245±10 | 0.65±0.1 |

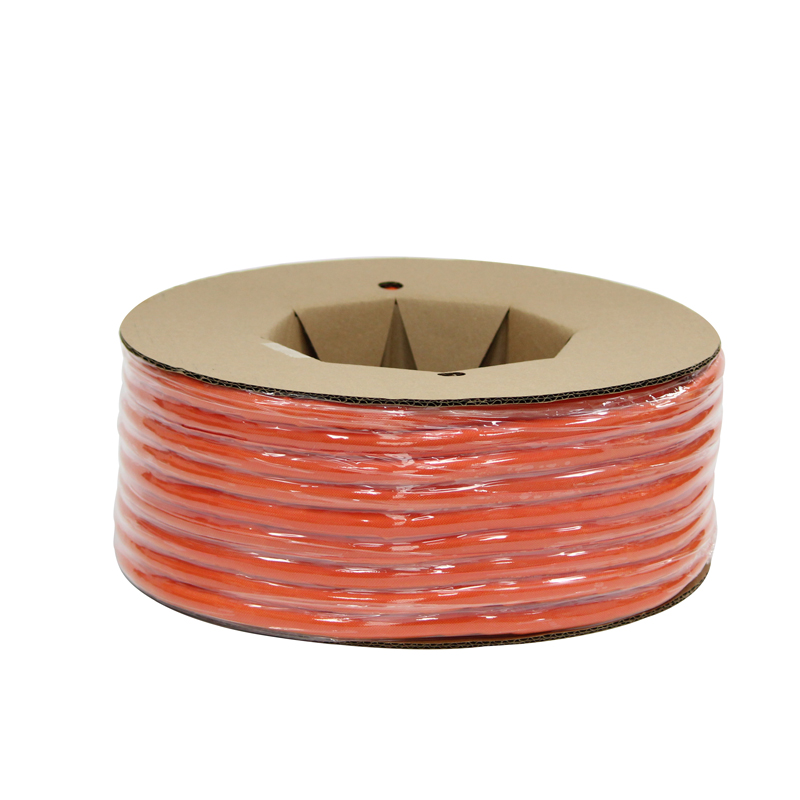

| Item No. | Size of reel（mm） | Carton size（cm） | Width（mm) |
| ZH-ZJ-3.0 | / | 39.5*39.5*56 | 24±2 |
| ZH-ZJ-5.0 | 380*380*140 | 39*39*58 | 20±3 |
| 310*310*80 | 31*31*56 | 28±3 | |
| ZH-ZJ-8.0 | 380*380*80 | 39*39*58 | 40±3 |
| 310*310*80 | 31*31*56 | 40±3 | |
| ZH-ZJ-10 | 380*380*140 | 39*39*58 | 50±5 |
| ZH-ZJ-13 | 480*480*140 | 49*49*58 | 60±5 |
| ZH-ZJ-16 | 540*540*140 | 55*55*58 | 80±5 |
| ZH-ZJ-19 | 480*480*140 | 49*49*58 | 95±5 |
| ZH-ZJ-25 | 420*420*140 | 43*43*58 | 125±5 |
| ZH-ZJ-29 | 480*480*140 | 49*49*58 | 145±8 |
| ZH-ZJ-32 | 540*540*140 | 55*55*58 | 145±8 |
| ZH-ZJ-38 | 540*540*140 | 55*55*58 | 190±8 |
| ZH-ZJ-50 | 600*600*280 | 61*61*73 | 250±8 |
>> Application Scenarios
● Automotive industry: protection for irregular‑shaped vehicle internal wire harness
● High‑speed rail & rail transit: rolling‑stock instrument and cable harness wrapping
● Communication equipment: wiring harness maintenance‑friendly cable protection
● Industrial automation equipment: flexible cable and instrument cable bundling & protection
● Flat wire harness & flexible tubing protection for machinery equipment
>> Selection Guide
● Measure the maximum outer diameter of bundled wire harness, select the sleeve nominal outer diameter slightly larger than harness OD for good self‑closing wrapping effect.
● Confirm working ambient temperature shall be kept within‑40℃ ~150℃.
● Choose hot‑knife cutting for clean‑cut ends when cutting to avoid fraying.
● Black & orange in stock; custom colors, sizes and printing available for large‑quantity orders.
>> FAQ
Q: What is the main advantage of self‑wrapping split braided sleeving?
A: Self‑closing split‑open structure, you can add or remove wires without disconnecting finished cables, ideal for harness modification and maintenance.
Q: What is the operating temperature and flame retardant grade?
A: Working temperature‑40℃~150℃, flame retardant grade UL94‑V0, RoHS2.0 compliant.
Q: Will the braided end fray after cutting?
A: It needs hot‑knife cutting to seal braided edge and prevent fraying.
Q: Can I get custom color, size or printing on sleeving?
A: Yes, custom colors, dimensions and surface printing services are supported for bulk‑volume orders.
Q: What industries is this sleeve widely used in?
A: Mainly for automotive, high‑speed‑rail transit, communication and industrial automation equipment wire harness protection.
