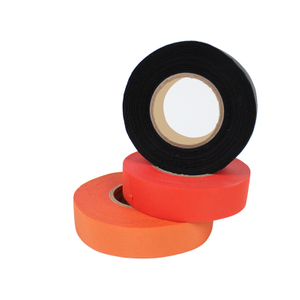

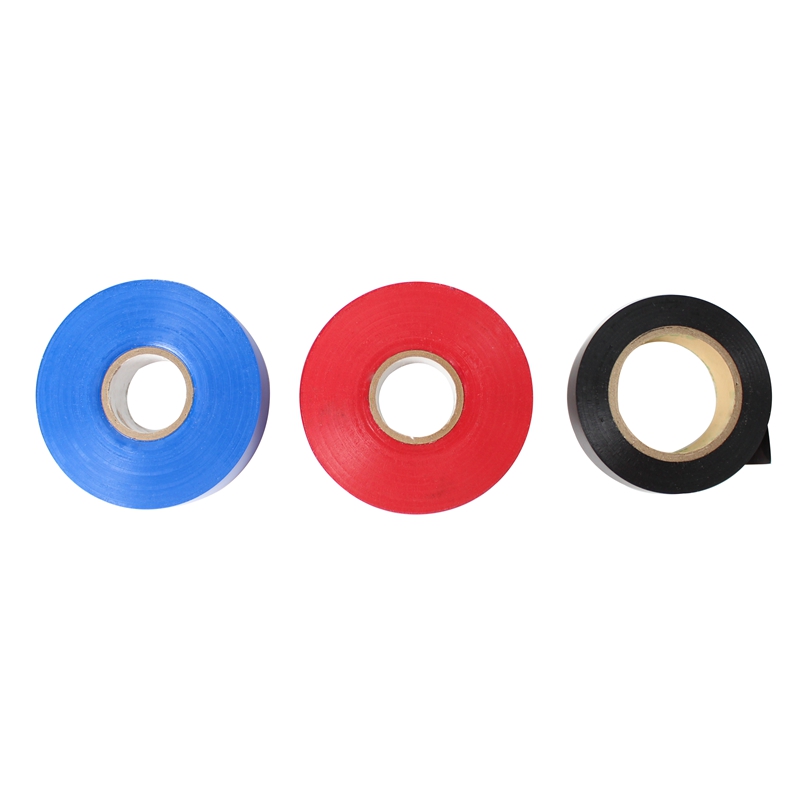

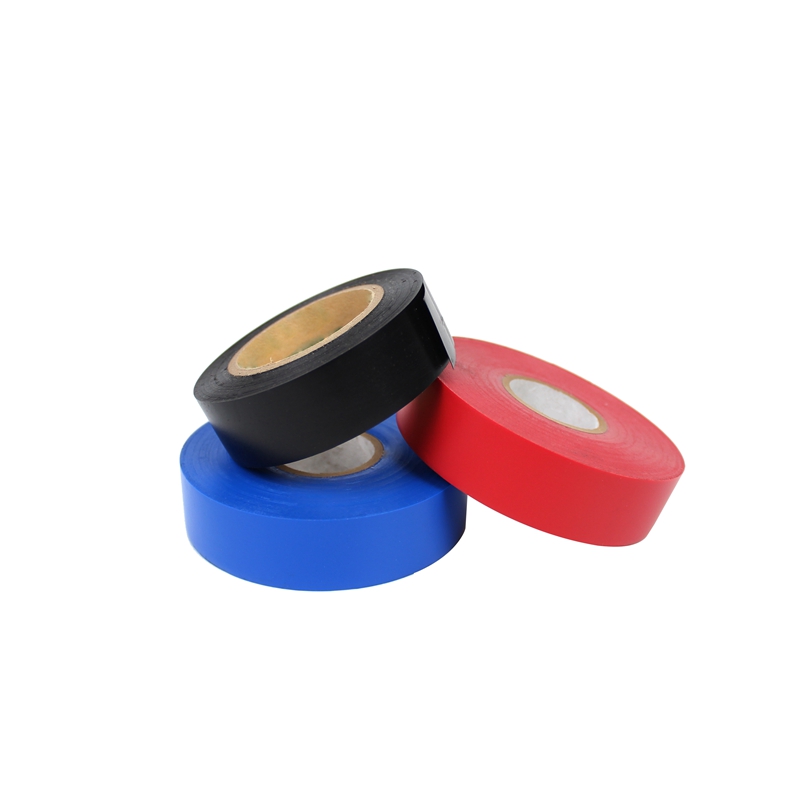

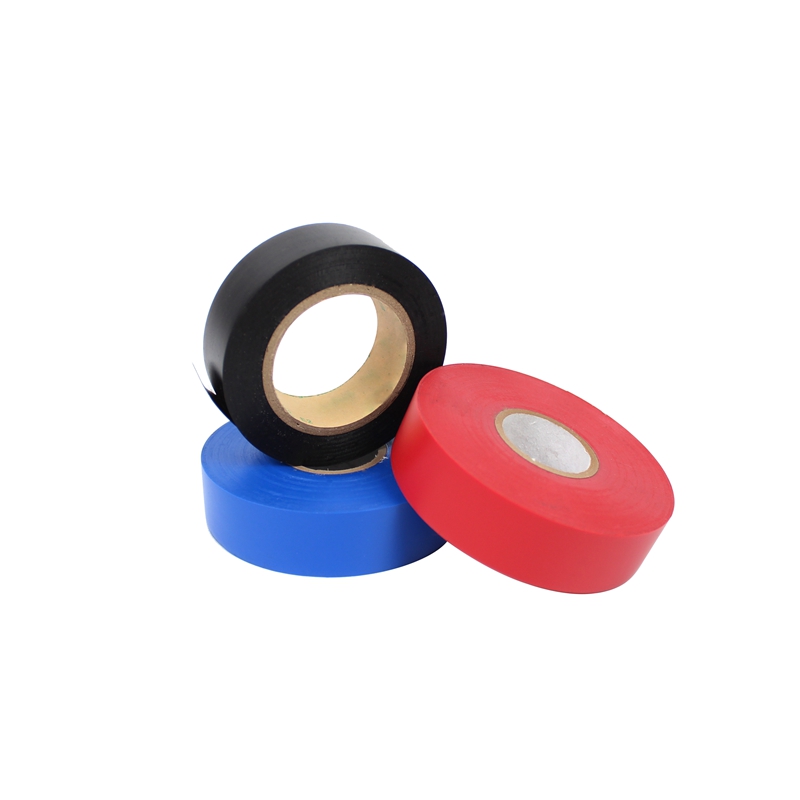

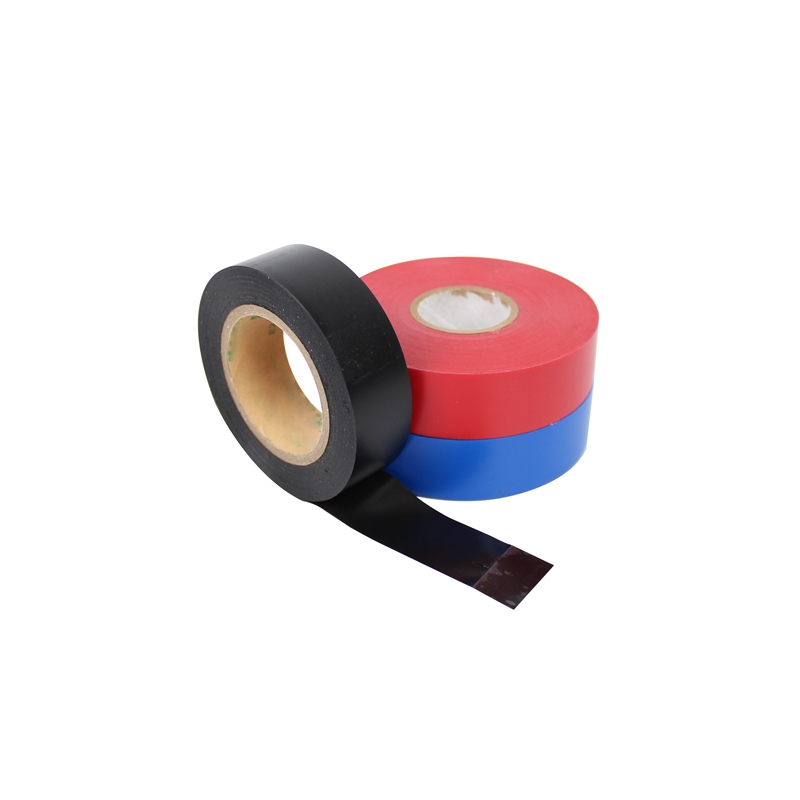

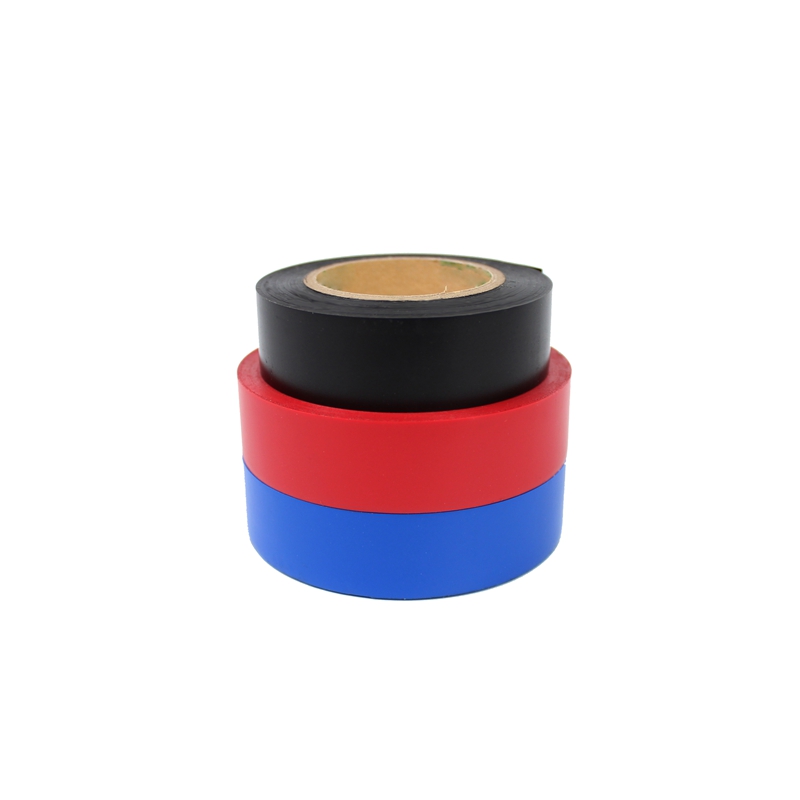

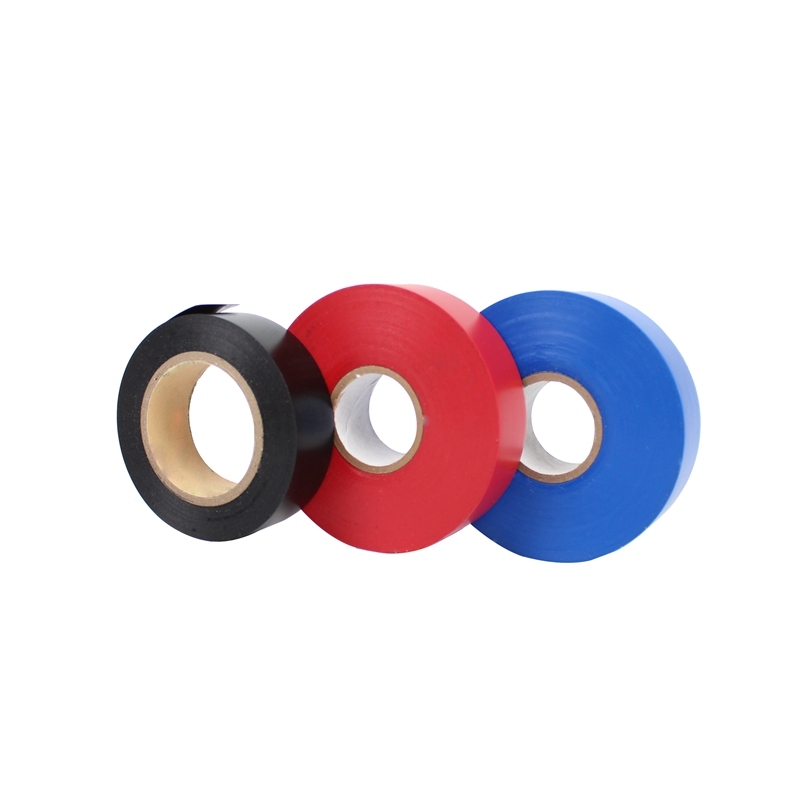

PVC Tape

Availability:

Quantity:



Inquire Add to Basket

Product Description

>> Product Introduction

PVC tape permanent wrapping of automotive cables and harnesses, the recommended application method is 50% overlap and no tension is applied to the last layer.

The original packaging is stored at 20~30℃, maximum relative humidity 65%, and protected from light, with a shelf life of two years.

>> Product Advantage

Product name: PVC tape
Product material: high quality soft PVC film + low VOC pressure sensitive adhesive.
Product advantages: high consistency, pressure sensitive, flame retardant, low VOC
Environmental requirements: RoHS and REACH compliant
Regular colors: black, white, yellow, red, blue and green.

>> Technical Parameters

Item	Typical Value	Unit	Test Method
Thickness	0.10±0.02 / 0.085±0.02	mm	EN 1942
Tensile Strength	14	N/cm	ISO 29864
Elongation at break	100		ISO 29864
Adhesion		%	ISO 29862
—Support	2.2	N/19mm
—Steel	1.9	N/19mm
Pine Weakness	1.5~4.0	N/cm	EN 1944
Flame retardant	Self-extinguishing	——	GMW 16740 / LV 312
Breakdown voltage	40	kv/mm	ASTM D1000
Breakdown voltage	40	kv/mm	ASTM D1000
Working temperature (Please select according to your needs)	-25~85 -25~105 -25~125	°C	GMW 16740 / LV312
Width Length	19mm	25mm	32mm
20mm	√	√	√
25mm	√	√	√
33mm	√	√	√
Note: 1) The inner ring diameter of the above specifications is Ф 38mm. 2) Other width dimensions or inner ring dimensions can be customized according to customer needs.
