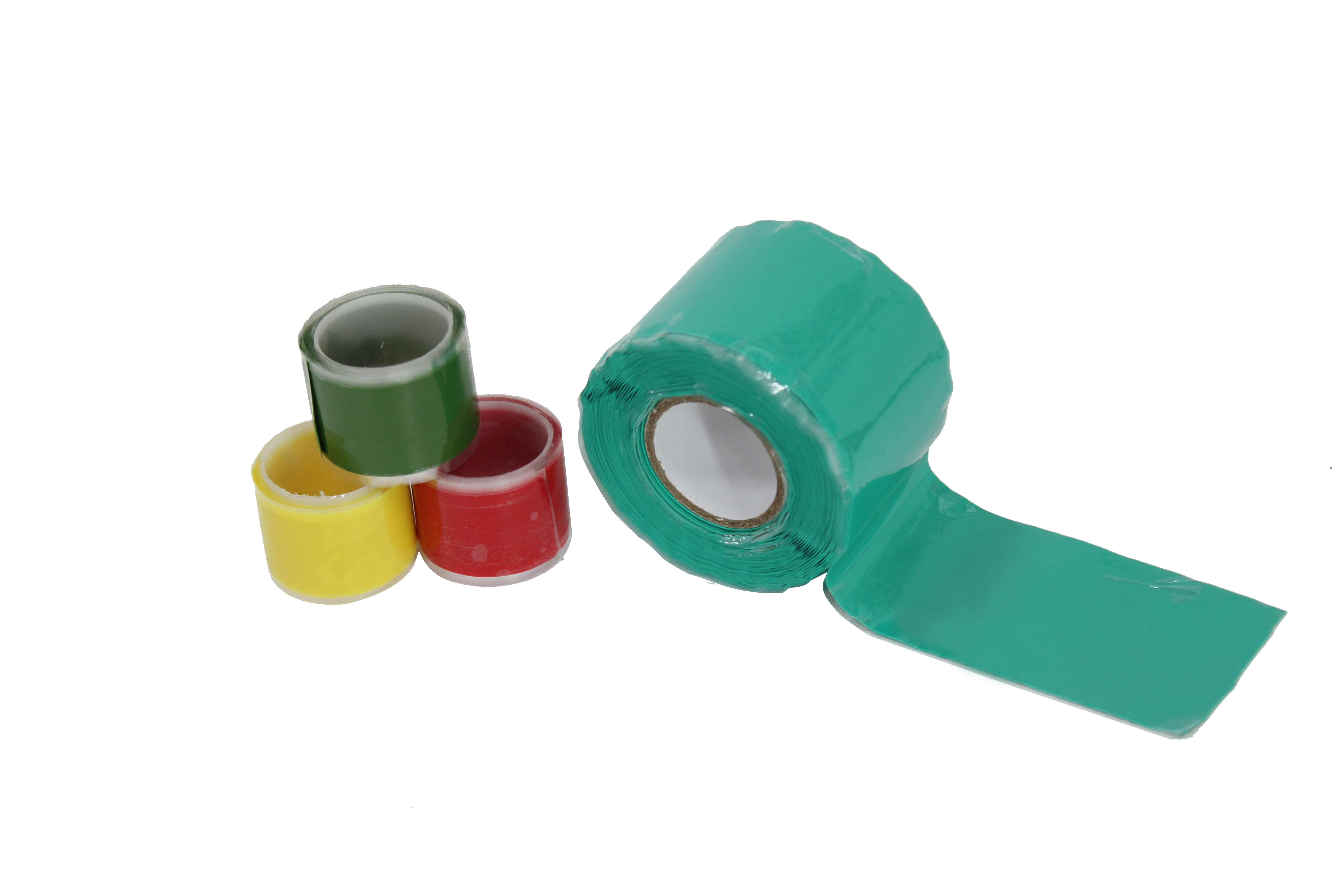

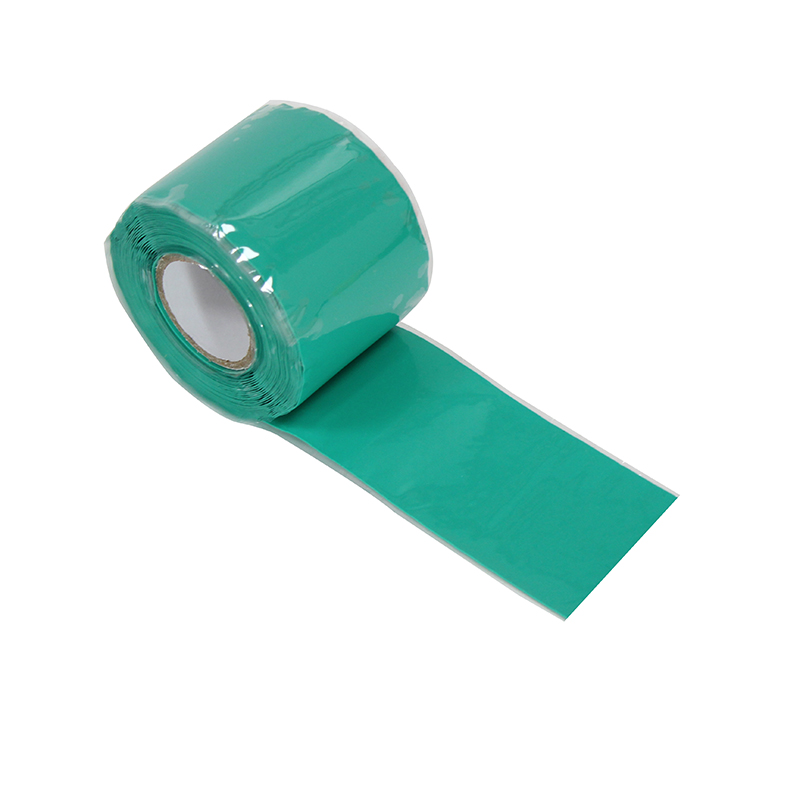

Silicone Self-adhesive Tape
Zhonghe
Our silicone self-fusing tape offers excellent electrical insulation, wide temperature adaptability, superior weather resistance, strong self-adhesion, good elongation and flexibility, excellent chemical stability, and is environmentally friendly and non-toxic. It is widely used in electrical insulation, industrial protection, electronics and electrical appliances, automotive manufacturing, aerospace, and medical fields. Storage conditions: Optimal storage at 20°C ± 5°C and 40–65% relative humidity. Shelf life is 360 days from shipment when stored at 20–30°C with relative humidity below 60%. Certifications: This product complies with RoHS 2.0 environmental standards.
| Material | Silicone rubber + Release film |
| Color | Iron red / White / Black / Yellow / Customized |
| Density | 1.16 g/cm³ |
| Tensile Strength | ≥ 8 MPa |
| Elongation at Break | ≥ 600% |
| Self-adhesive Peel Strength | ≥ 9 N/25mm |
| Surface Resistivity | 4.8 × 10¹⁶ Ω |
| Volume Resistivity | 6.7 × 10¹⁴ Ω·cm |
| Dielectric Strength (at 20℃ ± 3℃ in air) | > 32 kV/mm |
| Operating Temperature | -40 ~ 250℃ |
| Specification | Length L (m/roll) | Width W (mm) | Thickness T (mm) |
0.3mm*25mm | 1-20 | 19、20、25、50、100 | 0.3±0.02 |
| 0.5mm*25mm | 1-20 | 19、20、25、50、100 | 0.5±0.02 |
| 0.8mm*25mm | 1-20 | 19、20、25、50、100 | 0.8±0.02 |
| 1.0mm*25mm | 1-20 | 19、20、25、50、100 | 1.0±0.05 |
| Note: Other lengths, widths, and thicknesses can be customized. | |||
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
