>> Product Introduction
Application:
Zipper baided cable sleeving is widely used in wiring harness protection in industries such as automobiles, industrial equipment, offices, cinemas, etc.
Core advantages of the product:

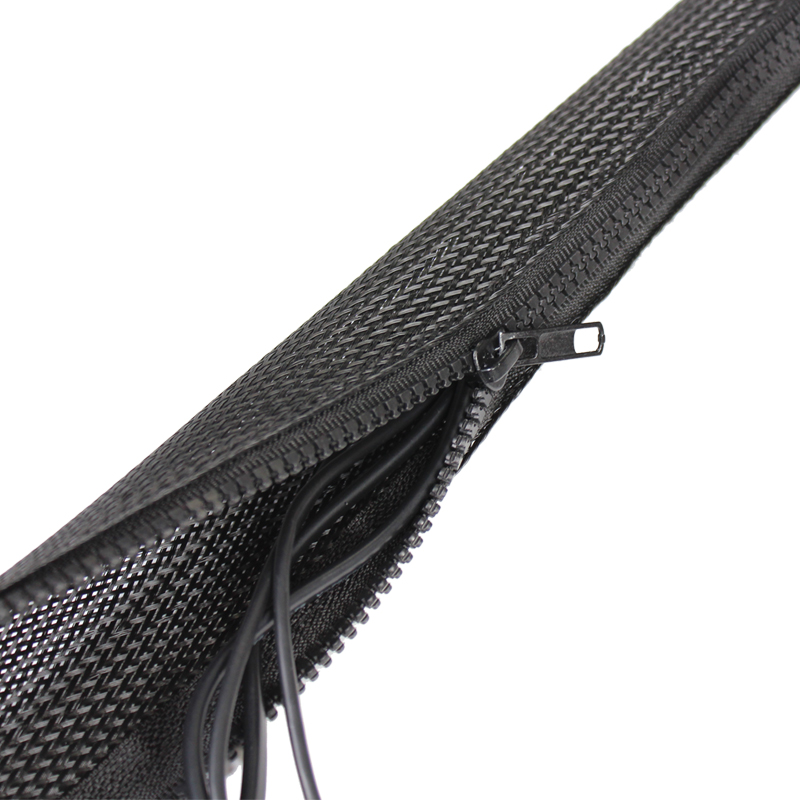

Zipper opening structure enables tool-free quick installation, facilitating later inspection and wire addition on finished harnesses.
High-density polyester braiding delivers superior abrasion and dust resistance to protect cables long-term.
Stable performance ranging from -50℃ to +150℃, suitable for diverse harsh high/low-temperature working conditions.
Certified with UL224 VW-1 flame retardancy and international environmental standards for safe multi-industry application.
In-stock standard sizes for prompt shipment; OEM customization on dimension, color and logo printing is available.
How to choose the size:
Measure overall outer diameter of bundled cables, pick sleeve ID 2~3mm bigger for smooth zip closure.
Standard inner diameter:15mm-80mm in stock; customized sizes available upon request.
>> Technical Parameters
| Product performance | Standard/index |
| Material | Polyester + Nylon |
| Applicable temperature | -50℃～150℃ |
| Flame retardant performance | GB 8410 - A0 / SAE J369-2007 |
| Chemical resistance | SAE J2192 (10 kinds of automotive fluids) |
| Abrasion resistance | ISO 12947.2-2016 |
| Environmental protection standard | Meets RoHS2.0 requirements |

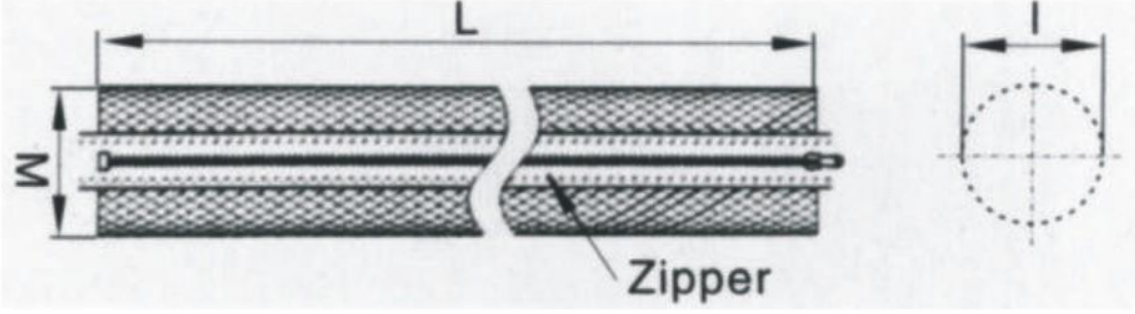

| Specifications (mm) | Inner diameter I(mm) | Expanded width (mm) | Package L(mm) |
| ZHL-020 | ≥20 | 70 | Packing quantity can be customized according to customer requirements |
| ZHL-025 | ≥25 | 90 | |
| ZHL-030 | ≥30 | 105 | |
| ZHL-035 | ≥35 | 120 | |
| ZHL-040 | ≥40 | 135 | |
| ZHL-045 | ≥45 | 150 | |
| ZHL-050 | ≥50 | 170 | |
| ZHL-060 | ≥60 | 200 |
>> FAQ
Q: What certificates does the zipper braided wrap own?
It has UL224 VW-1 flame retardant, abrasion test, RoHS2.0 and REACH certificates.
Q: Is custom size and color available?
Standard sizes in stock, bulk orders support custom color, specification
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
