>> Product Introduction

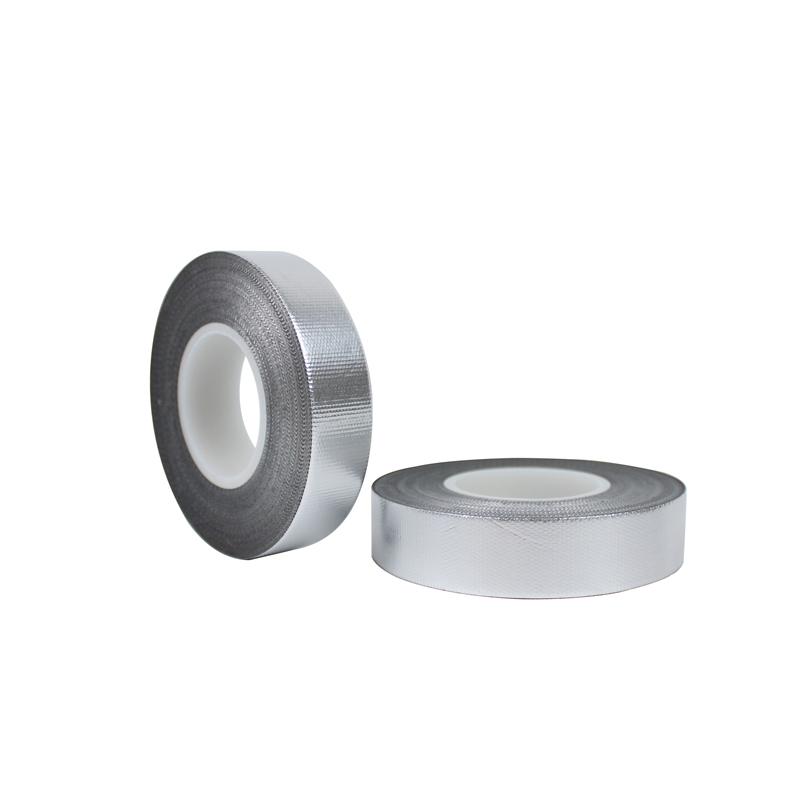

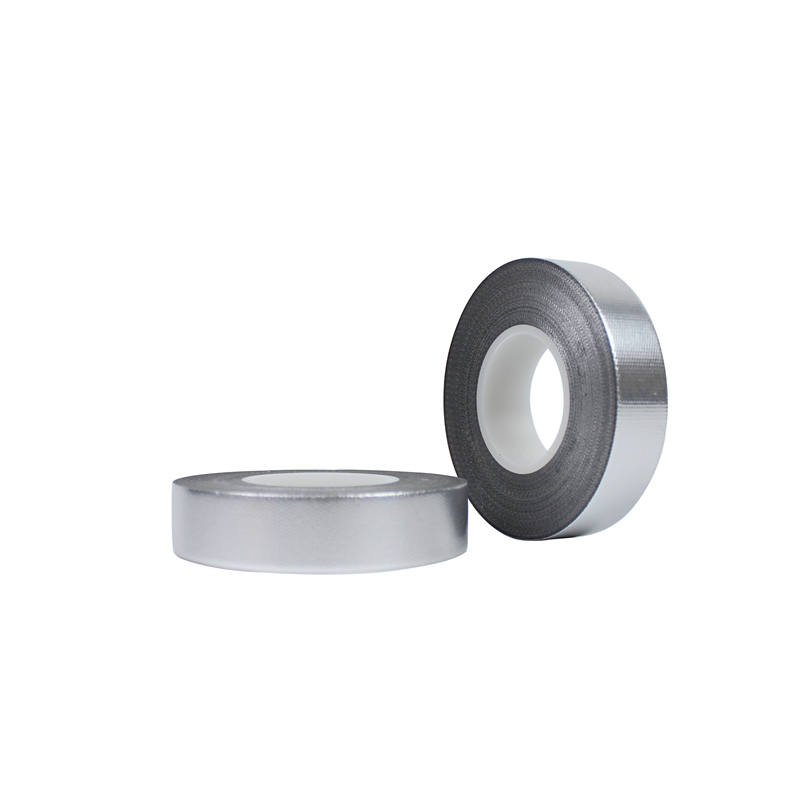

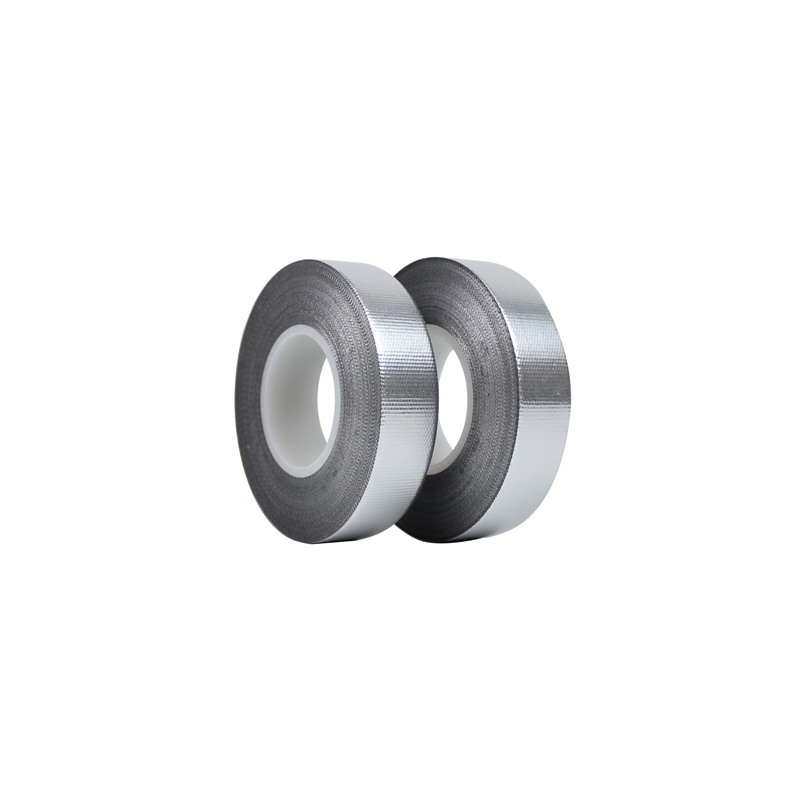

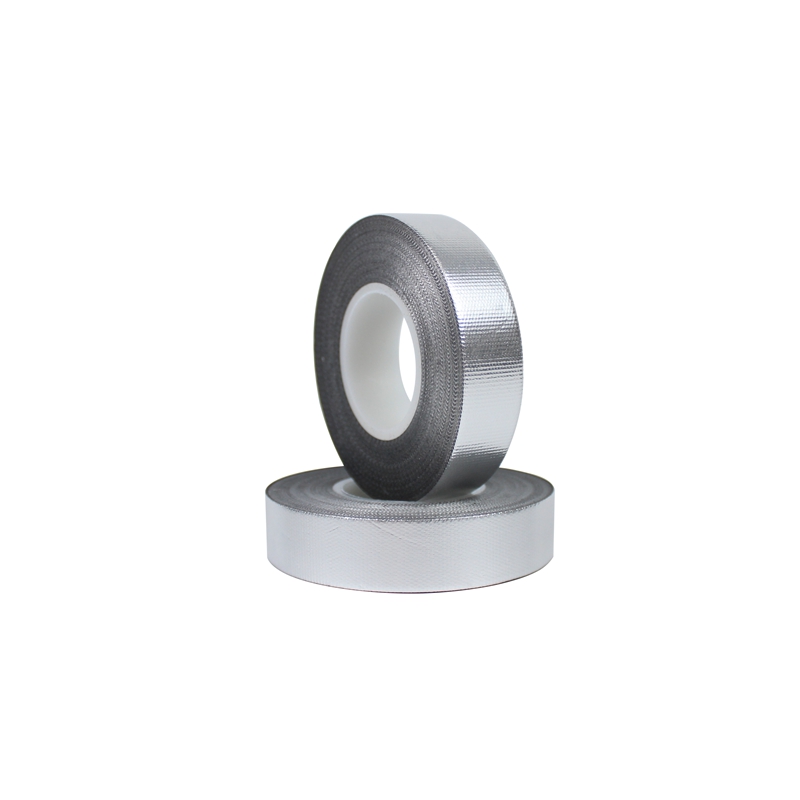

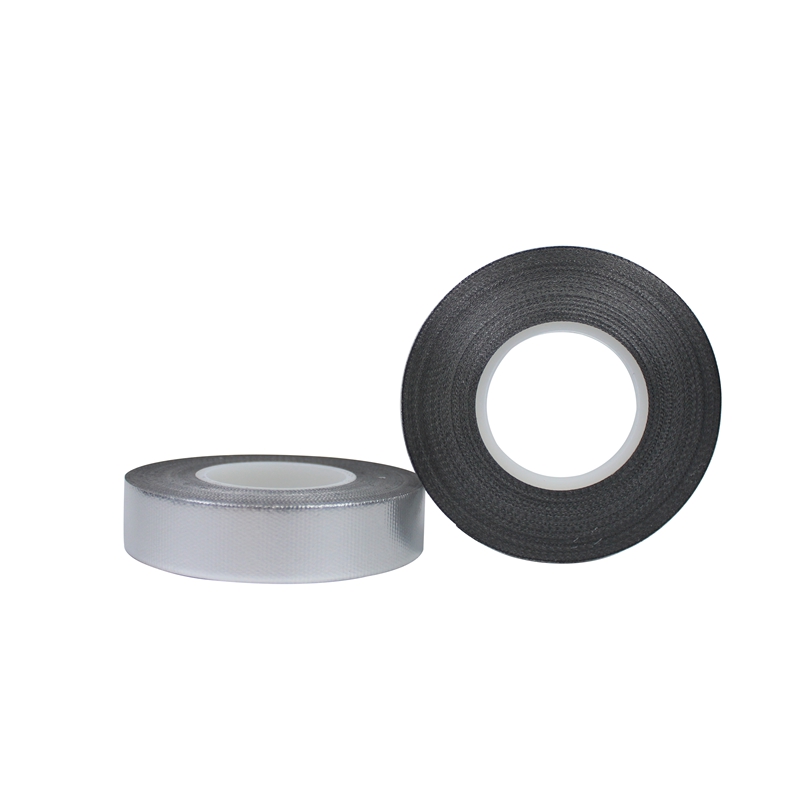

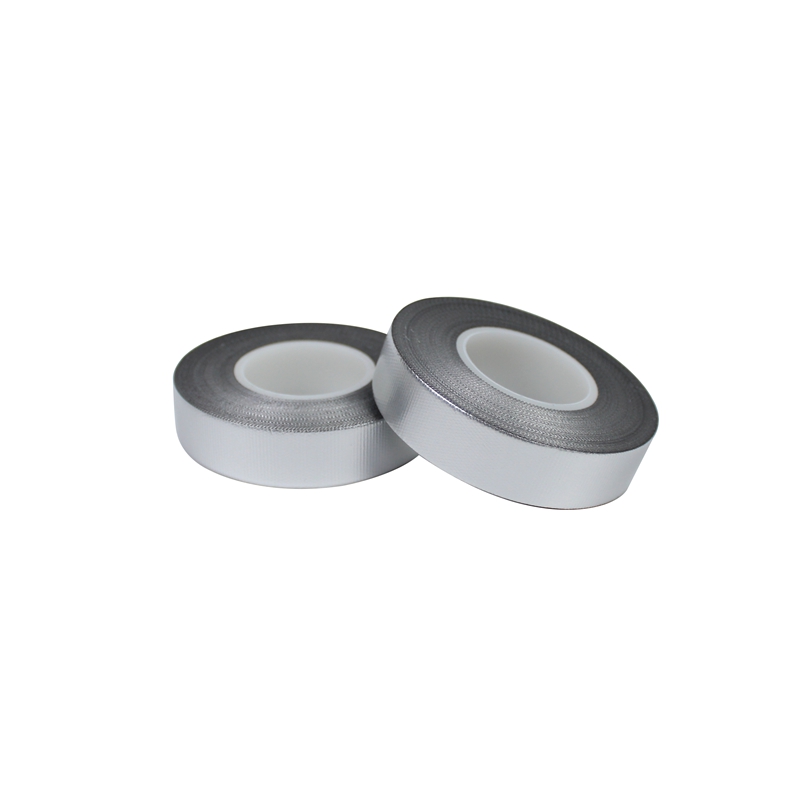

This product is mainly composed of aluminum foil, glass fiber yarn and high-performance glue, and has the functions of heat insulation and high temperature resistance. It is mainly used for wrapping, fixing and bundling various wiring harnesses in automobiles.
>> Technical Parameters
| Material | Aluminum foil/high-strength glass fiber + high-temperature resistant silicone |
| Working temperature | -40℃~225℃ |
| Tensile strength | ≥110N/cm |
| Elongation at break | ≥8% |
| Adhesion to steel | ≥3N/cm |
| Adhesion to back | ≥3N/cm |
| Flame retardancy | LV312 Class A non-flammable |
| Abrasion resistance | CLASS A |
| Certification | RoHS2.0 |
| Standard colors | Silver |
| Cutting tools | Hand-tear |
| Specification | Length | Width | Thickness |
| 19*0.17 | 25/33 | 19±1.5 | 0.17±0.05 |
| 25*0.17 | 25/33 | 25±1.5 | 0.17±0.05 |
| 32*0.17 | 25/33 | 32±1.5 | 0.17±0.05 |
| Note: Other lengths and widths can be customized (Unit: mm) | |||
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
