>> Product Introduction

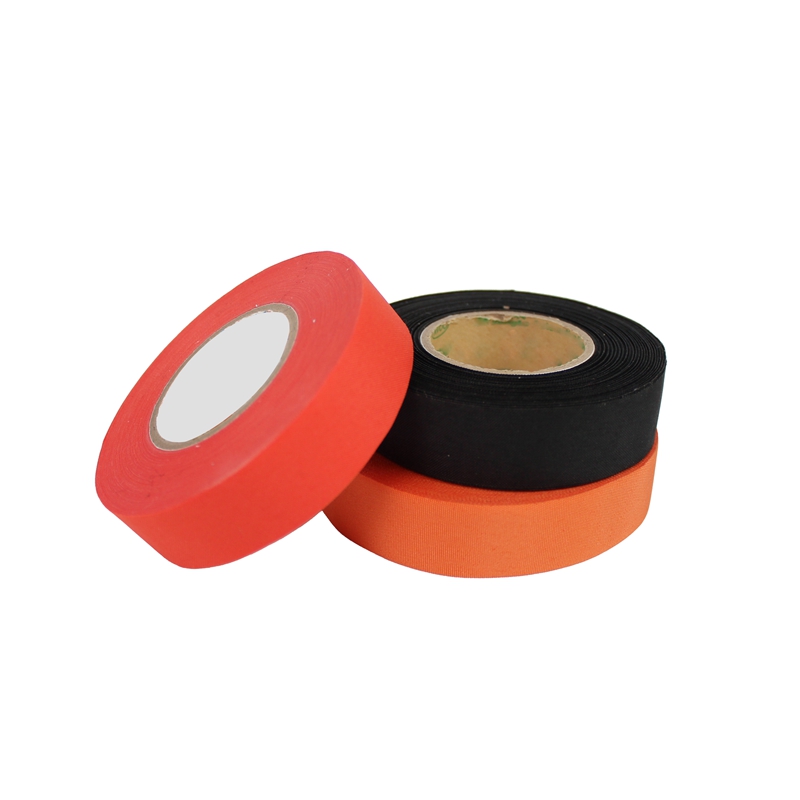

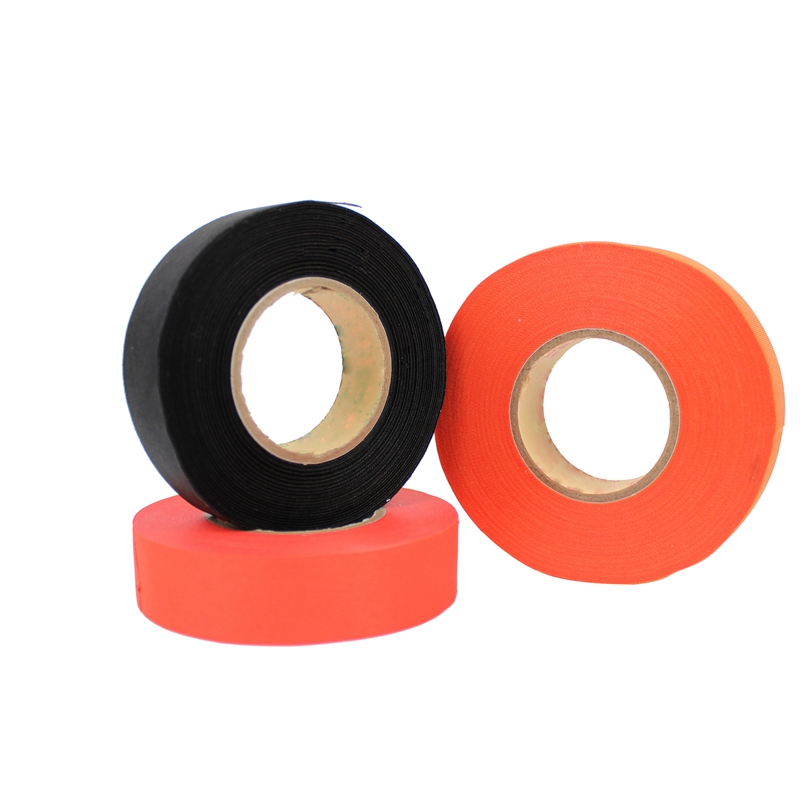

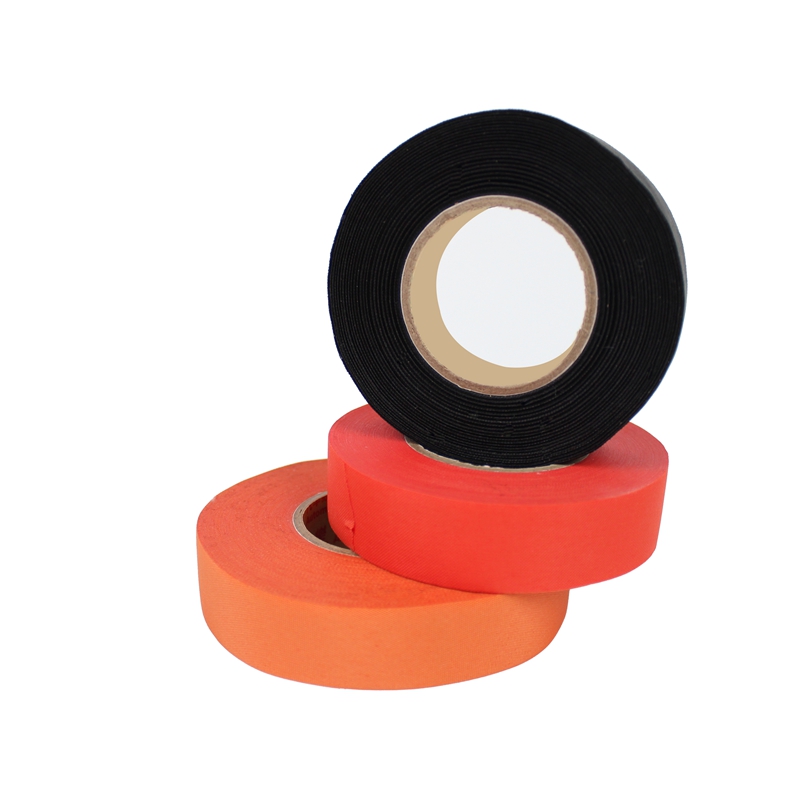

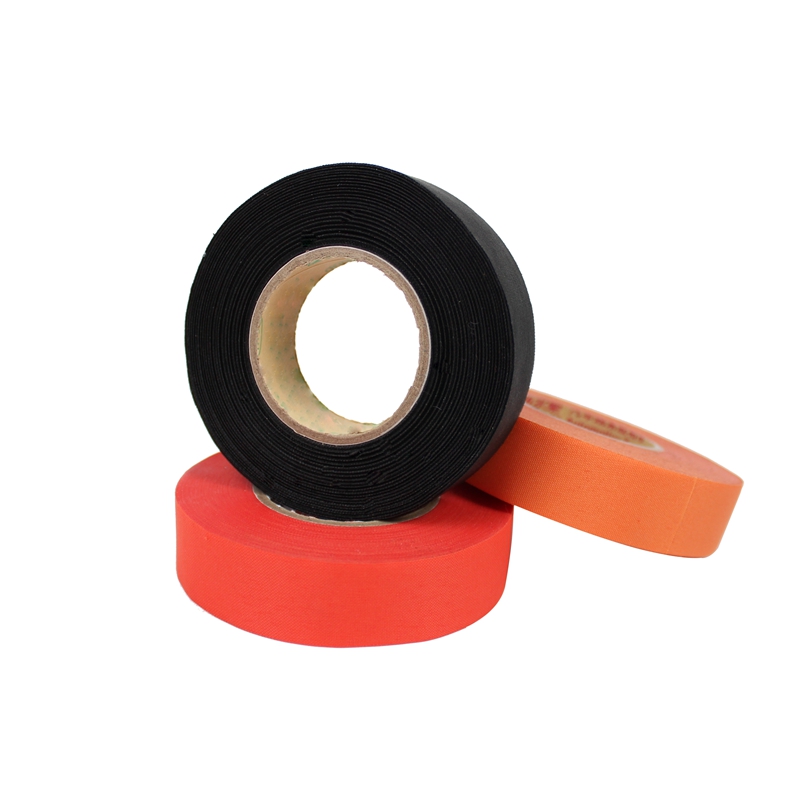

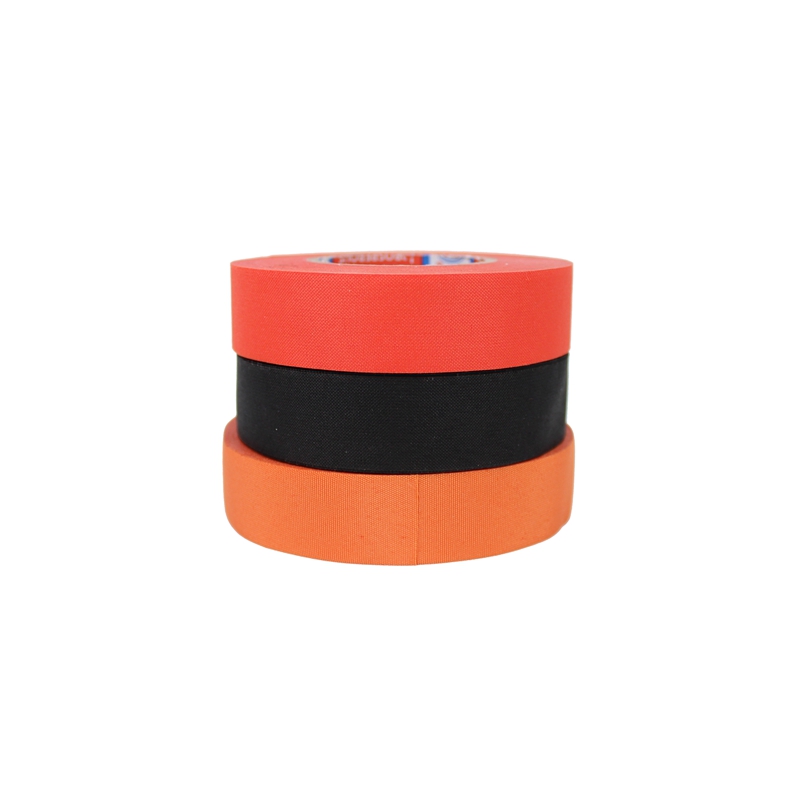

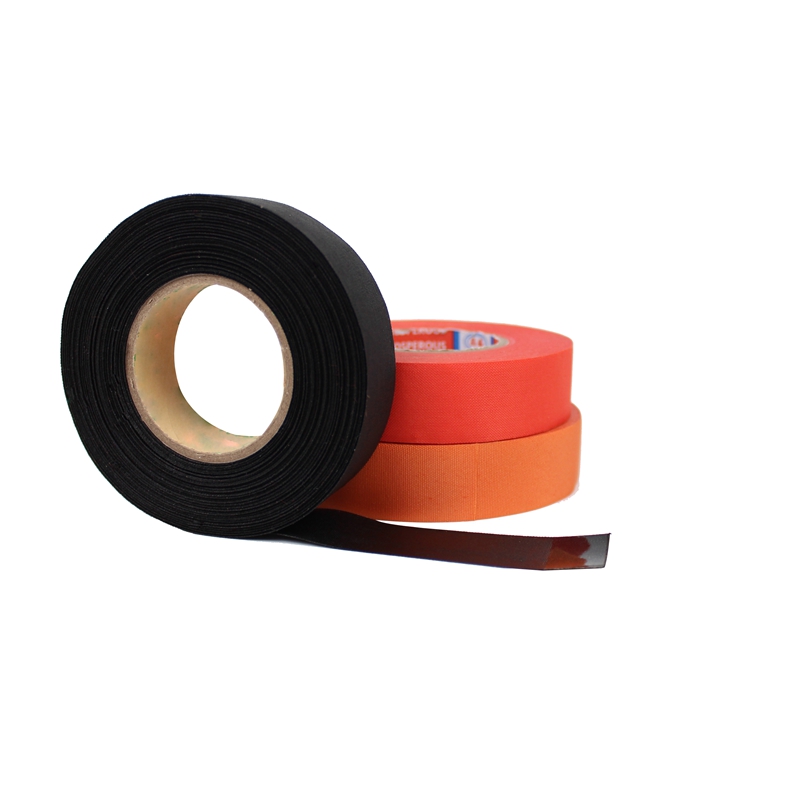

Using fiber cloth material as the base material, it has the characteristics of high temperature stability, soft and smooth, no harmful substances, not easy to corrode, wear resistance, good flame retardant performance, strong anti-fouling ability, etc. It is an ideal choice for automotive engine area wiring harness tape. Professionally used for winding and bundling of automotive wiring harnesses. It is best to wind in a semi-overlapping manner. When winding the last layer, do not overstretch to prevent warping.
Application: It is widely used in various scenarios such as fixing, bundling, repairing, marking, and shielding. It is also widely used in automobiles, electronics, construction, electrical appliances, aircraft, ships, rail locomotives, entertainment exhibitions and other fields.
>> Product Advantage
Product name: PET cloth-based tape
Product material: high-quality PET cloth tape + modified rubber-based adhesive.
Product advantages: low VOC, hand-tearable, excellent chemical resistance, flexible and easy to operate, suitable for both machine
Operation and manual operation.
Environmental protection requirements: RoHS compliant.
Regular color: black.
>> Technical Parameters
| Items | Tearable type | Wear-resistant type |
| Thickness | 0.15±0.05mm | 0.25±0.05mm |
| Width | 19/25mm | 19/25mm |
| Elongation at break | ＞10% | ＞10% |
| Unwinding force (19mm width) | 3-9N | 3-9N |
| Back adhesion | ≥1.5N/cm | ≥2.5N/cm |
| Temperature grade | 125℃ | 150℃ |
| Flame stability | C grade (burning speed ≤100mm/min) | Class C (burning speed ≤100mm/min) |
| Tensile strength | ＞60N/cm | ≥160N/cm |
| Hand tearing force | Tearable | Unbreakable |
| Steel adhesion | ≥1.5N/cm | ≥2.5N/cm |
| Cold stability | -40℃/4h) | -40℃/4h) |
| Abrasion stability | A grade (0-100) | Class D (1000-5000 strokes) |
| Color | Black/orange | Black/Orange |
| Shelf life | Stored in the original packaging box at 23℃x35%RH for 12 months | Stored in original packaging box for 12 months at 23℃x35%RH |
| Standard length | 15m (other lengths can also be customized) | 15m (other lengths can also be customized) |
| Standard width | 19mm (special widths can also be customized) | 19mm (special widths can also be customized) |
| Standard paper core inner diameter | 38mm | 38mm |
| Width (mm) | Thickness (mm) | Package (meter/roll) | Hand grip strength |
| 19±1.5 | 0.15±0.1 | 25 | Can be torn by hand |
| 19±1.5 | 0.25±0.1 | 25 | Do not tear by hand |
| 25±1.5 | 0.15±0.1 | 25 | Can be torn by hand |
| 25±1.5 | 0.25±0.1 | 25 | Do not tear by hand |
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
