>> Product Introduction
Put the Heat Shrinkable Finger Sleeve on the part to be used, use a hot air gun to heat and shrink the large end of the molded sleeve, fix it, and then slowly heat and shrink it in a 360° spiral manner towards the small end, until the small end is completely shrunk, and the inner layer of hot melt adhesive melts and overflows. Wait for the shrunk molded sleeve to cool to room temperature before moving it. If you want to quickly move the shrunk cable, you can use a wet cloth to cool it until it reaches room temperature.
Tips: The finger shrink sleeves are divided into Y-type, straight-through type, and three-branch twig type. Different shapes can meet the different application scenario requirements of customers.
Application: This 1:3 split molded sleeve provides mechanical protection and strain relief for cable splits.
>> Technical Parameters
| Material Name | Pre-coated glue number | Hot melt adhesive number |
| Soft polyolefin | /42 or /86 | s-1017 or s-1048 |
| Fluororubber | —— | S-1255-04 |
| Solution resistant rubber | /42 /86 or /225 | s-1017 or s-1048 |
| Semi-rigid modified polyolefin | /42 /86 or /225 | s-1017 or s-1048 |
| Halogen-free low-hazard polyolefin | /86 or 180 | S-1030 或 s-1048 |

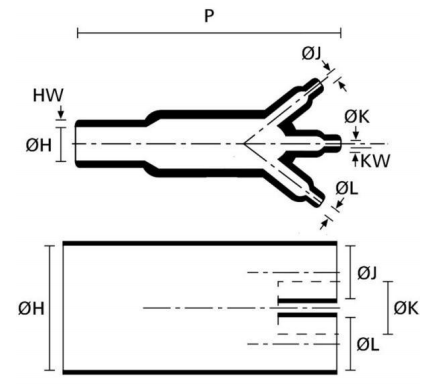

| Product Model | Size before shrinkage | Size after shrinkage | |||||
| Hmin | J,K&Lmin | Hmax | J,K&Lmin | HW±20% | JW,KW LW±20% | P±10% | |
| MS-4B/E-01 | 13.2 | 6.6 | 6.6 | 3.6 | 1.52 | 1.02 | 46.2 |
| MS-4B/E-02 | 26.9 | 13.2 | 13.2 | 6.9 | 2.54 | 1.52 | 93.2 |
| MS-4B/E-03 | 38.6 | 19.3 | 18.8 | 9.7 | 3.05 | 1.78 | 135.1 |
| MS-4B/E-04 | 55.6 | 26.9 | 25.4 | 12.4 | 4.57 | 3.05 | 192.0 |
| MS-4B/E-05 | 91.4 | 45.7 | 54.6 | 27.4 | 7.11 | 4.57 | 390.4 |
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
