>> Product Introduction

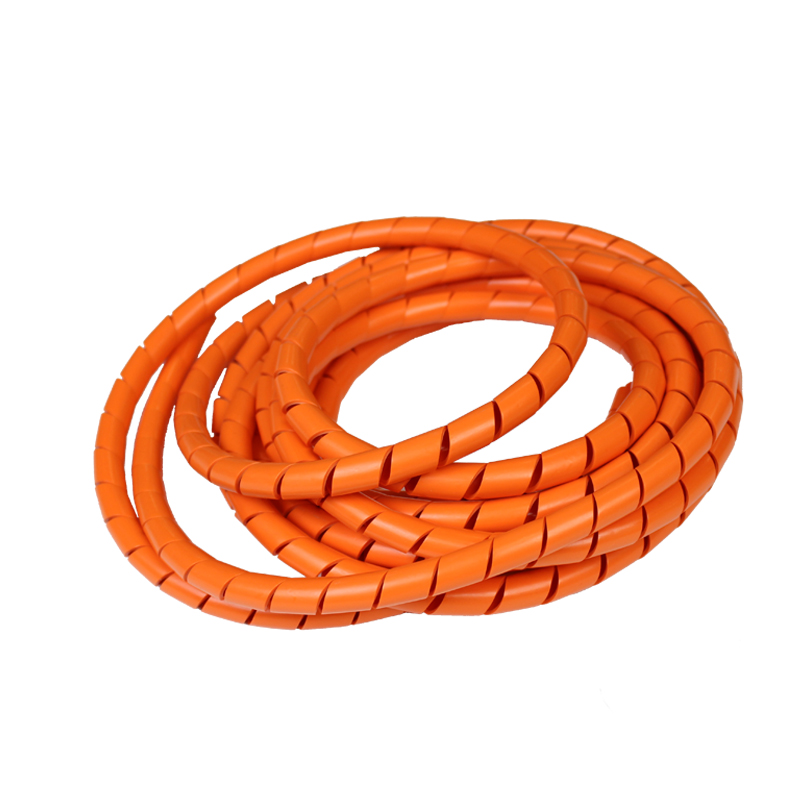

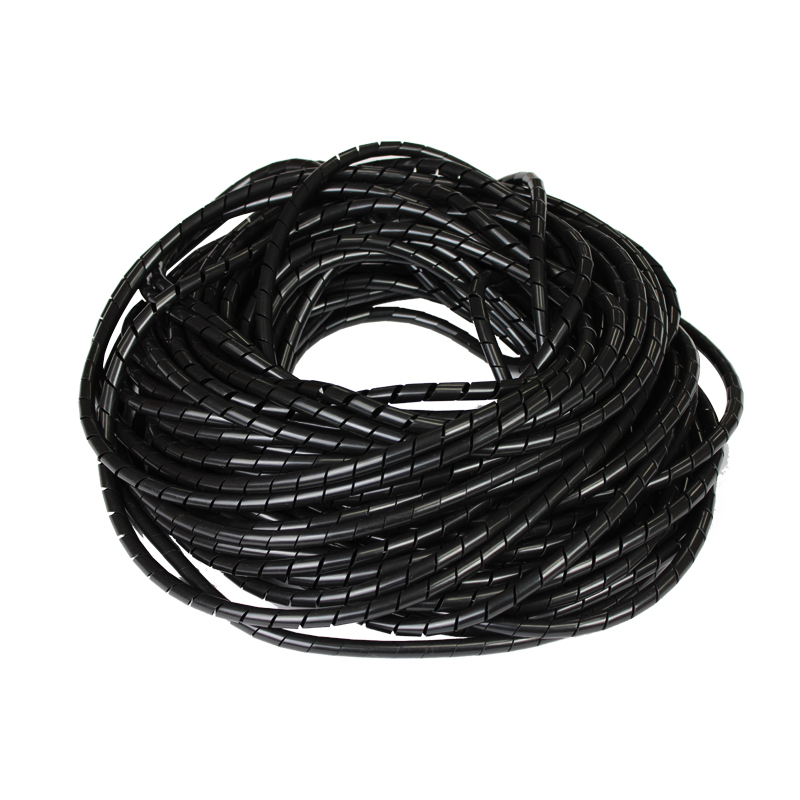

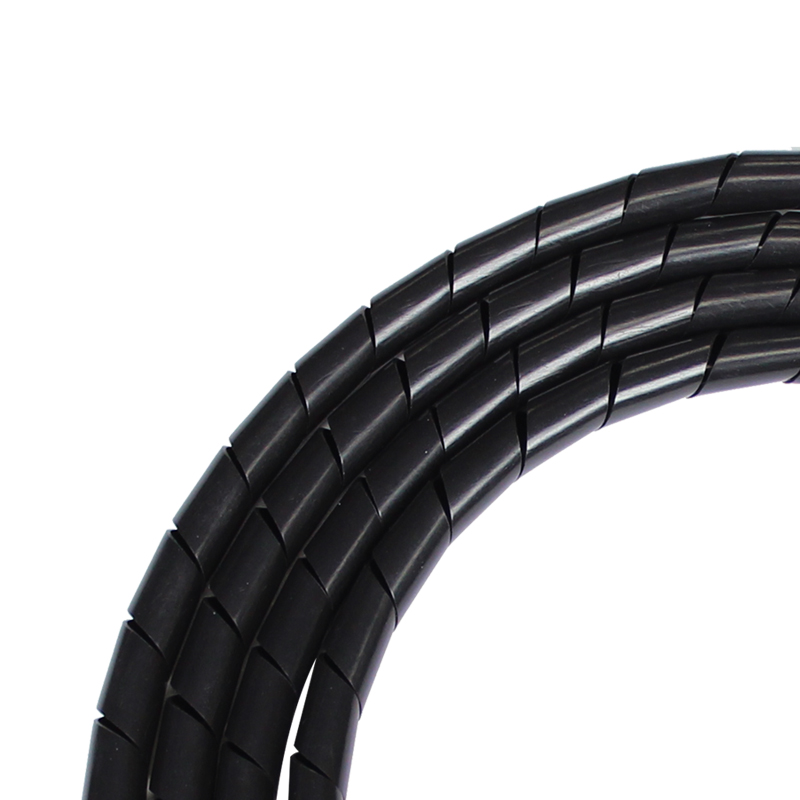

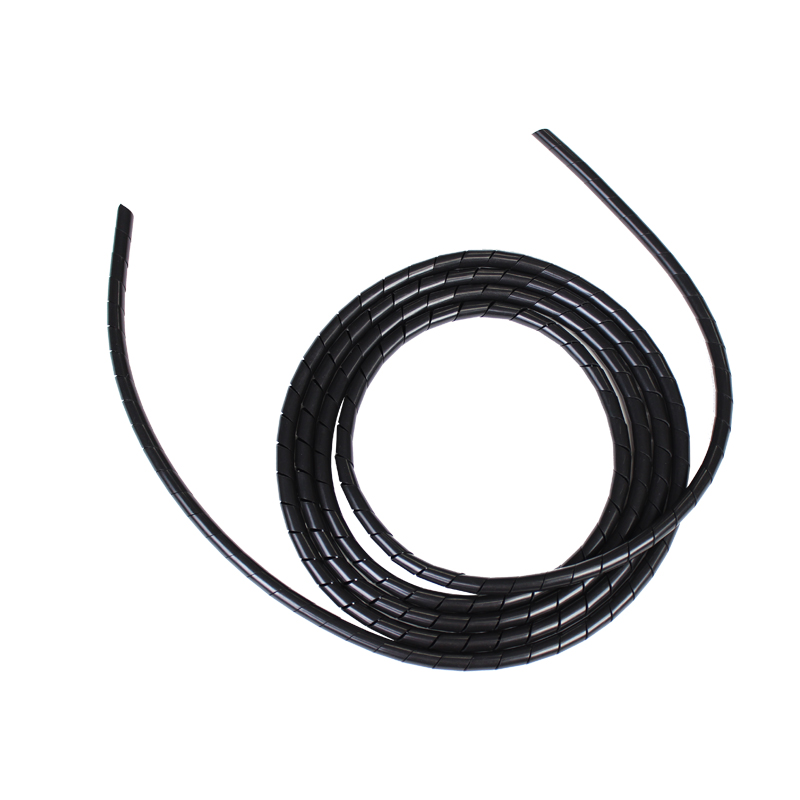

PE Flame retardant spiral wrap pipe is usually made of PE material with soft, low friction coefficient characteristics, in order to meet the needs of special scenes and special performance, can also be used PP, PA, Teflon, silicone, etc., customers can be customized according to different locations and needs.
>> Product Advantage
Material: PE/flame retardant PE
Temperature: -40℃~80℃

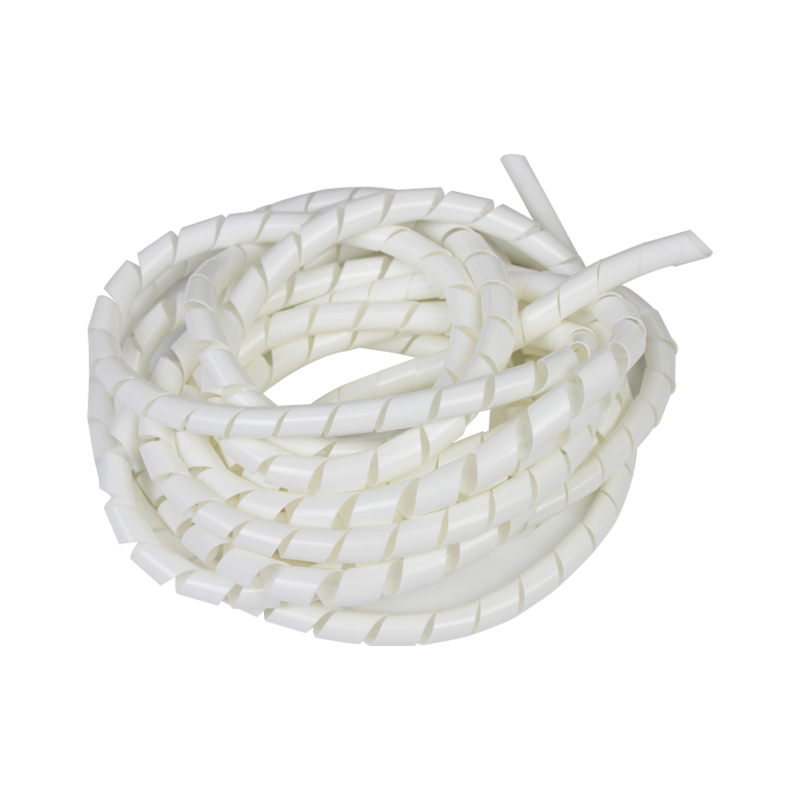

Color: Normally transparent black. Flame retardant PE is white and other colors can be customized.
How to use: PE spiral wrap tubing first fix the starting end with a protective tape, then press the clockwise ring, the bundle of wires can be bundled into one body.

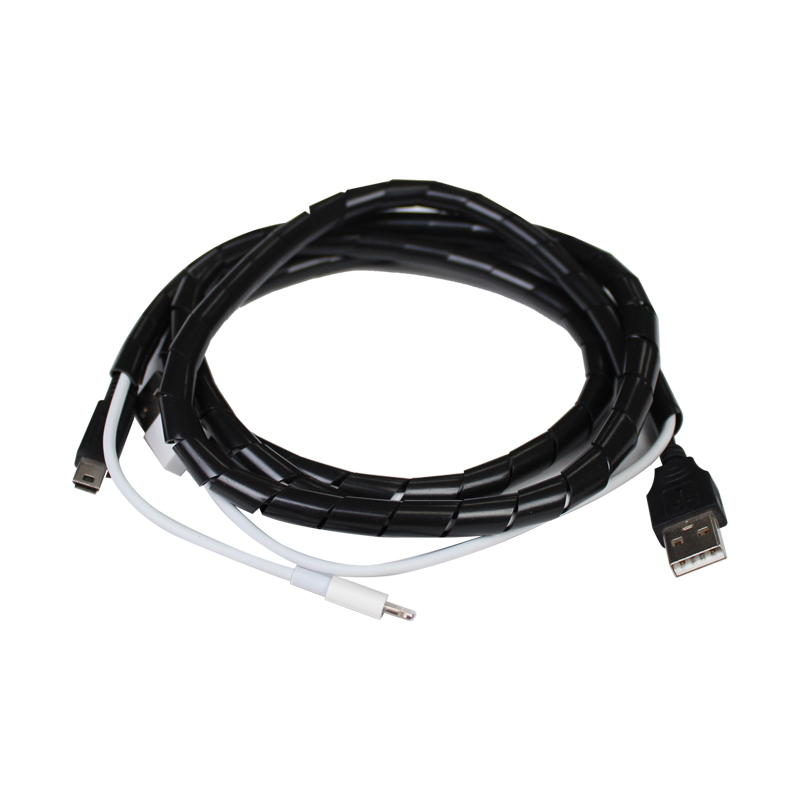

Uses: As a protection wire from abrasion and insulation and can improve the beauty of wire bending.
>> Technical Parameters
>> Technical Parameters

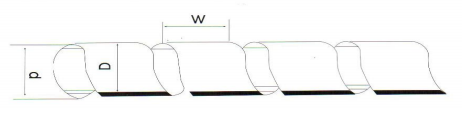

| Spec | Inner diameter d(mm) | Outside diameter D(mm) | Screw pitch W(mm) | Thickness A(mm) | Recommended binding range | Packing (M/roll) |
| Ф4 | 3.0 | 4.0 | 6±1 | 0.45±0.05 | 4-50 | 50 |
| Ф5 | 4.0 | 5.0 | 7±1 | 0.5±0.1 | 4-50 | 50 |
| Ф6 | 5.0 | 6 | 8±1 | 0.5±0.1 | 4-50 | 20 |
| Ф8 | 6.8 | 8 | 10±1 | 0.6±0.1 | 6-60 | 12 |
| Ф10 | 8.8 | 10 | 12±1 | 0.6±0.1 | 7.5-60 | 10 |
| Ф12 | 10.5 | 12 | 14±1 | 0.75±0.1 | 9-65 | 8 |
| Ф13 | 12.0 | 13 | 14±1 | 0.5±0.1 | 10-70 | 8 |
| Ф14 | 12.2 | 14 | 16±1 | 0.9±0.1 | 12-75 | 6 |
| Ф16 | 14.0 | 16 | 18±1 | 1.0±0.1 | 12-80 | 4 |
| Ф18 | 15.8 | 18 | 20±1 | 1.1±0.1 | 14-90 | 3.5 |
| Ф20 | 17.8 | 20 | 22±1 | 1.1±0.1 | 15-100 | 3 |
| Ф22 | 19.5 | 22 | 19.6±1 | 1.2±0.3 | 20-130 | 3 |
| Ф25 | 22.5 | 25 | 20±1 | 1.2±0.3 | 22-135 | 2.5 |
| Ф28 | 25 | 28 | 20±1 | 1.5±0.3 | 25-140 | 2 |
| Ф30 | 27 | 30 | 20±1 | 1.5±0.3 | 27-150 | 1.5 |
| Ф50 | 45 | 50 | 50±2 | 2±0.6 | 45-550 | 5 |

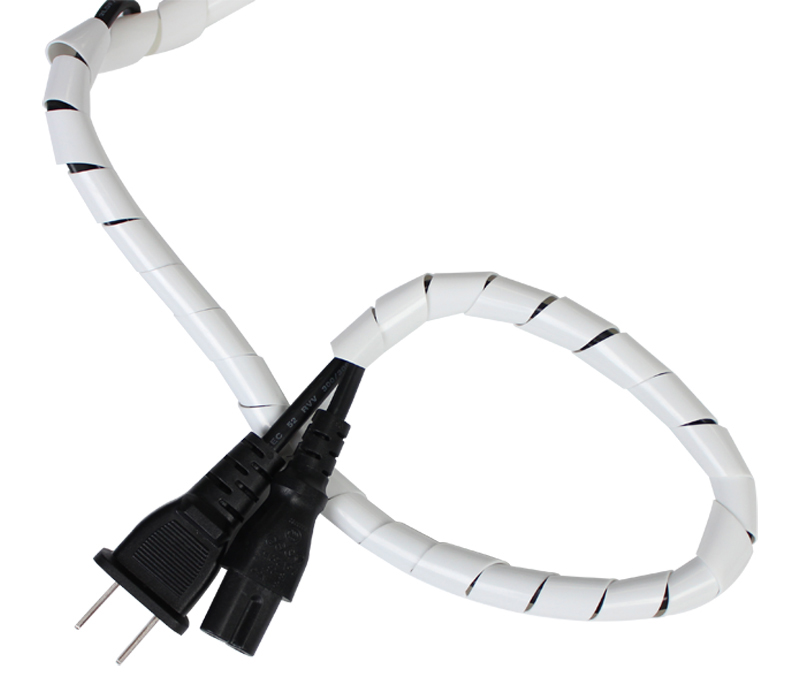

>> Product Application
>> FAQ
Q: Why choose us?
We have more than 15 years of experience in this industry;
OEM & ODM;
Ready-made products will be shipped within three days, and customized products will be shipped within 15 days;
Q: Do you have any certificate?
We have pass ISO16949, ISO14001, REACH, RoHS2.0, CE, EN45545 Test Report, ELV Test report
Q: What's the MOQ for your production?
We accept both large and small order, please contact us for details.
Q: Can i expect to get the sample?
Sure, Free samples can sent to you for test.
